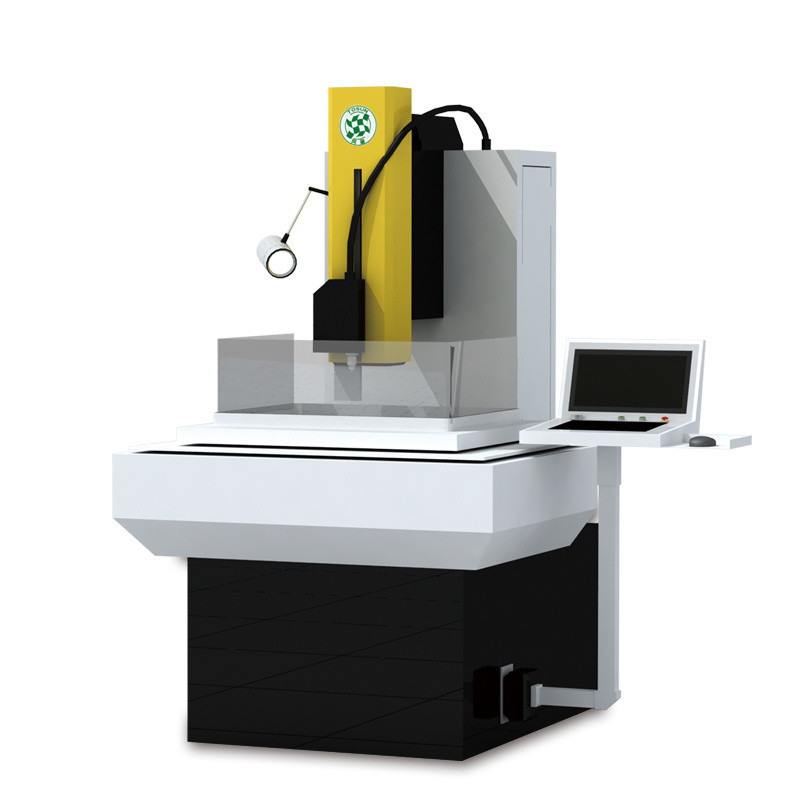

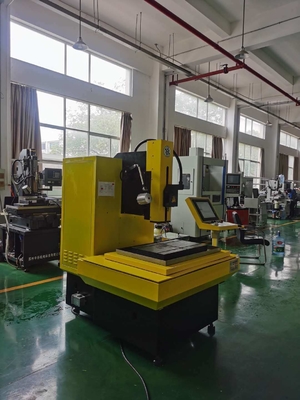

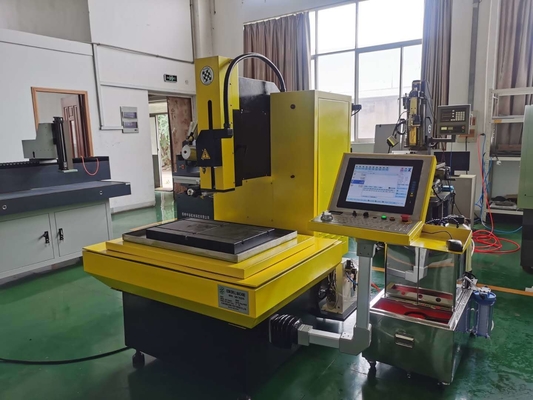

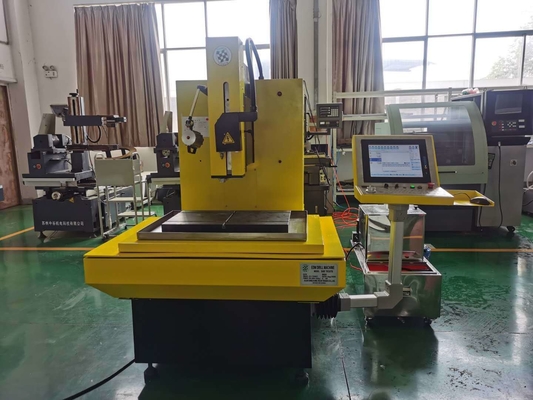

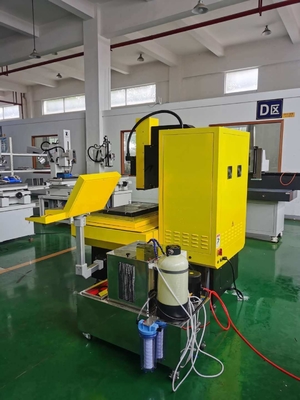

Small Hole Drilling Machine SJD704WL 400x300x370 Multi Axis CNC EDM for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | SJD704WL | Numerical Control: | CNC/MNC |
|---|---|---|---|
| Performance Classification: | Economical CNC Machine Tools | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 1300x1700x2100 |
| Trademark: | TOSUN | Origin: | Suzhou |
| HS Code: | 8456301090 | Supply Ability: | 1000PCS/Year |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Application: | Metal | Process Usage: | Metal-Drilling CNC Machine Tools |
| Movement Method: | Linear Control | Control Method: | Open-Loop Control |
| Customization: | Available | Customized Request | ||
Product Description
Features:
- High quality resin sand cast bed, precision screw guide, AC servo control.

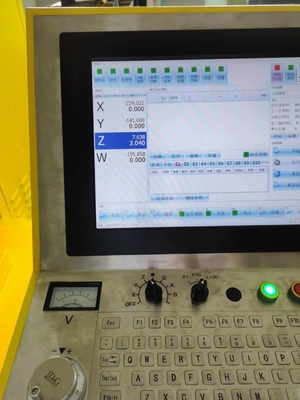

- 4-axis CNC system on Windows.
- Programing base on 2D/3D model.
- 15" LCD screen and industrial PC controller.
- EDM blind hole fixed depth machining.
- Automatic centering and positioning function.
- Penetration automatic detection function.
- Transfer data over the network.
- Integrated machine design& precision hole processing.
- Improve processing efficiency by automatic high speed hole drilling.
- It can process all kinds of hard materials and stainless steel.
- CAD document automatic programming. No limit to the number of processing hole.
- It can alert in case of the electrode depletion.
- Optional B/C axis.
| Description | Unit | Specification |
| Model | SJD704WL | |
| Worktable Size (L×W) | mm | 700×400 |
| X,Y,Z axis Travel | mm | 400×300×370 |
| W axis Travel | mm | 300 |
| Electrode Diameter | mm | Φ0.15~Φ3.0 |
| Max. Workpiece Height | mm | 370 |
| Max. Workpiece Weight | kg | 300 |
| Max. Working Solution Pressure | Mpa | 10 |
| Max. Working Current | A | 30 |
| Pitch Compensation | mm | Yes |
| Location Accuracy/Repeating Position Precision | mm | 0.01/0.005 |
| Programming Mode | mm | MDI, CAD, List |
| Max. moving Speed of x, y-axis | mm/min | ≥2000 |
| Working Solution | Pure water | |
| Machine Dimension | mm | 1300x1700x2100 |
| Machine Weight | Kg | 1500 |
