Metal-Cutting CNC Machine Tools Medium Speed Wire Cutting EDM Smart M800
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | M800 | Numerical Control: | CNC/MNC |
|---|---|---|---|
| Processing Precision: | 0.01~0.02(mm) | Performance Classification: | Economical CNC Machine Tools |
| Condition: | New | Transport Package: | Wooden Case |
| Specification: | 2900x2500x2150 | Trademark: | TOSUN |
| Origin: | Suzhou | HS Code: | 8456301090 |
| Supply Ability: | 1000PCS/Year | After-sales Service: | Yes |
| Warranty: | 1 Year | Application: | Metal |
| Process Usage: | Metal-Cutting CNC Machine Tools | Movement Method: | Linear Control |
| Control Method: | Open-Loop Control | Customization: | Available | Customized Request |
Product Description

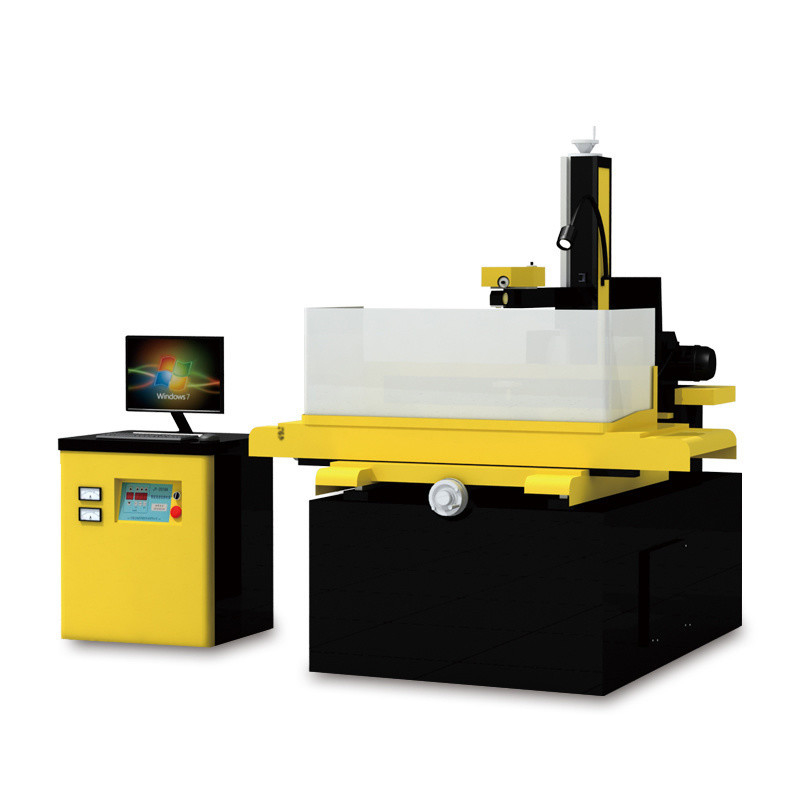

Experience the perfect blend of efficiency and affordability with our CNC Electric Discharge Molybdenum Wire-cut Machine M800. Designed specifically for individual processors and small to medium-sized enterprises, this machine is the ideal solution for those seeking to optimize their wire cutting processes.
With its compact design, our machine saves valuable space in your workspace, allowing you to maximize efficiency without compromising on performance. The embedded control system ensures fast processing speeds, while also minimizing the need for maintenance, saving you time and resources.
The equipment is suitable for customers who require higher processing efficiency and lower roughness and accuracy.
Trust Jilin Songjiang Tech-trade Co., Ltd., a reputable company known for delivering high-quality products and excellent customer service. With a one-year warranty and online support, you can have peace of mind knowing that we stand behind our products.
| No. | Description | Unit | Specification |
| 1 | Model | M800 | |
| 2 | Worktable Size (L×W) | mm | 870x1200 |
| 3 | Worktable Travel (X×Y) | mm | 800x1000 |
| 4 | Max. Workpiece Height | mm | 800 |
| 5 | Max. Workpiece Weight | kg | 2000 |
| 6 | Machine Dimensions (L×W×H) | mm | 2900x2500x2150 |
| 7 | Machine Weight | kg | 4000 |
Electrical Parameters
| No. | Description | Unit | Specification |
| 1 | Max. Cutting Speed | mm²/min | 180 |
| 2 | Wire Electrode Diameter | mm | Φ0.18-φ0.25 |
| 3 | Machining Precision (Cutting the octagon in 10mm) | mm | ≤0.012 |
| 4 | Taper/Workpiece Height | 6°/100mm | |
| 5 | Power Consumption | kw | ≤2 |
| 6 | Surface roughness | um | Single cut Ra<3 |

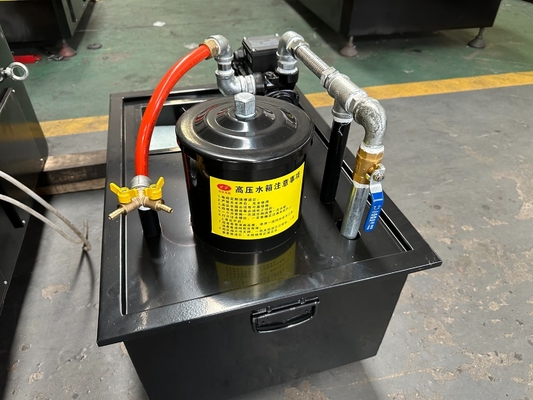

| 7 | High pressure water tank | Multi-stage filter system | |
| 8 | Plastic water jet plate; Bronze spout | ||
| 9 | Control method of wire spool, cooling system | Controlled by the program and the NC panel |
|
| 10 | Repeating position precision of X, Y-axis | μm | ±1 |
| 11 | Guide rail type | V-groove rail | |
| 12 | Speed regulation of transport wire tube | converter | |
| 13 | Number of control axes | 5 | |
| 14 | Power Supply | AC380V, 50Hz |
