Servo Motor CNC Electro erosive Wire Cut Machine A320 for Metal
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | A320 | Process Usage: | Metal-Cutting CNC Machine Tools |
|---|---|---|---|
| Movement Method: | Linear Control | Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC | Processing Precision: | 0.01~0.02(mm) |
| Performance Classification: | Economical CNC Machine Tools | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 1750× 1300× 2050 |
| Trademark: | TOSUN | Origin: | Suzhou |
| HS Code: | 8456301090 | Supply Ability: | 1000PCS/Year |
| Package Size: | 1750.00cm * 1250.00cm * 2050.00cm | Package Gross Weight: | 1600.000kg |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Application: | Metal | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Product Description

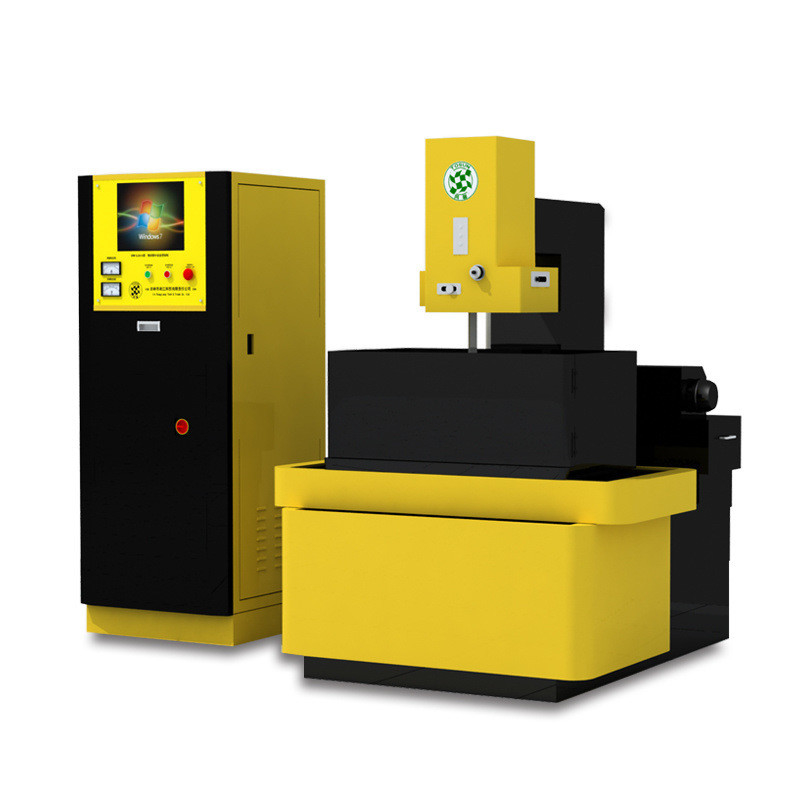

Servo Motor CNC Electroerosive Wire Cut Machine (Advanced) A320C is our state-of-the-art wire cutting machine. With its exceptional cutting accuracy and consistency, this machine is perfect for precision work piece processing and precision die processing.
At Jilin Songjiang Tech-trade Co., Ltd., we take pride in delivering top-notch equipment that meets the highest standards. Our CNC EDM Electroerosive Machine A320C is no exception. With its advanced features and cutting-edge technology, it's a game-changer in the industry.
| No. | Description | Unit | Specification |
| 1 | Model | A320 | |

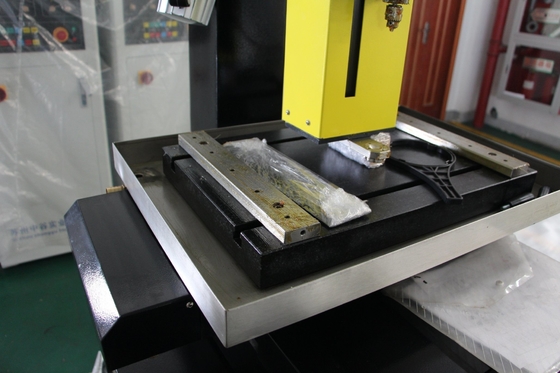

| 2 | Worktable Size (L×W) | mm | 550×700 |
| 3 | Worktable Travel (X×Y) | mm | 320×400 |
| 4 | Max. Workpiece Height | mm | 250 |
| 5 | Max. Workpiece Weight | kg | 350 |
| 6 | Machine Dimensions (L×W×H) | mm | 1750×1250×2050 |
| 7 | Machine Weight | kg | 1600 |
Electrical Parameters
| No. | Description | Unit | Specification |
| 1 | Max. Cutting Speed | mm²/min | 200 |
| 2 | Wire Electrode Diameter | mm | Φ0.10~Φ0.25 |
| 3 | Machining Precision (Cutting the octagon in 10mm) | mm | ≤0.010 |
| 4 | Taper/Workpiece Height | *3°/100mm | |
| 5 | Power Consumption | kw | 3kw |
| 6 | Surface roughness | μm | Single cut Ra<2.0, **Multiple cut Ra<0.8 |
| 7 | High pressure water tank | Multi-stage filter system | |

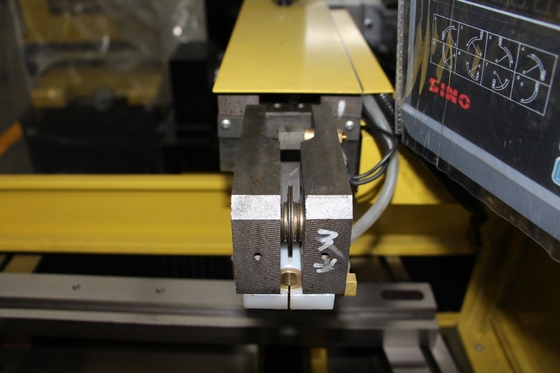

| 8 | Wire guided spinneret | Ruby spinneret | |
| 9 | Control method of wire spool, cooling system | Controlled by the program and the NC panel | |
| 10 | Repeating position precision of X, Y-axis | μm | ±1 |
| 11 | Guide rail type | Line guide rail | |
| 12 | Speed regulation of transport wire tube | Converter | |
| 13 | Number of control axes | 5 | |
| 14 | Power Supply | AC380V, 50Hz |
