Factory Price Servo Motor CNC Wire Cutting EDM Machine A500

Factory Price Servo Motor CNC Wire Cutting EDM Machine A500

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: A500 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 2050× 1600× 2150 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

Servo Motor CNC Electroerosive Wire Cut Machine (Advanced) A500 is our state-of-the-art wire cutting machine. With its exceptional cutting accuracy and consistency, this machine is perfect for precision work piece processing and precision die processing.

At Jilin Songjiang Tech-trade Co., Ltd., we take pride in delivering top-notch equipment that meets the highest standards. Our CNC EDM Electroerosive Machine A320C is no exception. With its advanced features and cutting-edge technology, it's a game-changer in the industry.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model

A500
2 Worktable Size (L×W) mm 680×900
3 Worktable Travel (X×Y) mm 500×600
4 Max. Workpiece Height mm 300
5 Max. Workpiece Weight kg 500
6 Machine Dimensions (L×W×H) mm 2050×1600×2150
7 Machine Weight kg 2200

Electrical Parameters
No. Description Unit Specification
1 Max. cutting speed mm²/min 200
2 Wire electrode diameter mm Φ0.10~Φ0.25
3 Machining precision (Cutting the octagon in 10mm) mm ≤0.010/10mm
4 Taper/Workpiece height   *3°/100mm
5 Power consumption kw 3
6 Surface roughness μm Single cut Ra<2.0,
**Multiple cut Ra<0.8

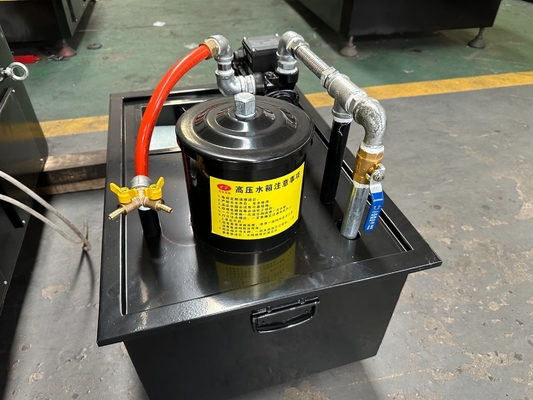

7 High pressure water tank   Multi-stage filter system
8 Wire guided spinneret   Ruby spinneret
9 Control method of wire spool, cooling system   Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type   Linear guide rail
12 Speed regulation of transport wire tube   Converter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

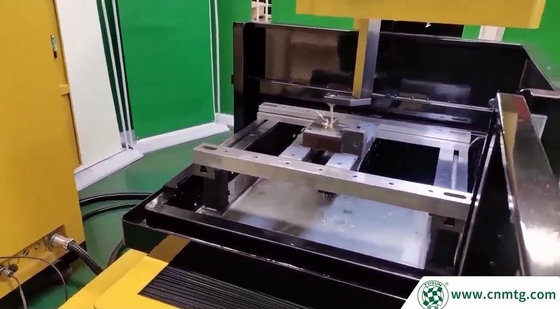

Detailed Photos

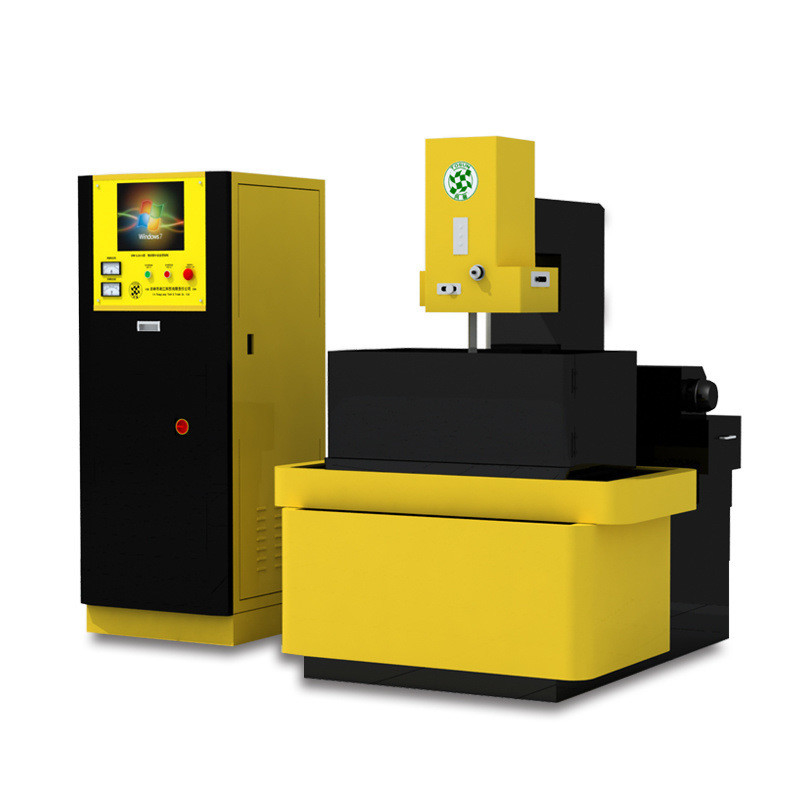

Servo Motor CNC Wire Cutting EDM Machine (Advanced) A500

Packaging & Shipping

Servo Motor CNC Wire Cutting EDM Machine (Advanced) A500

Servo Motor CNC Wire Cutting EDM Machine (Advanced) A500

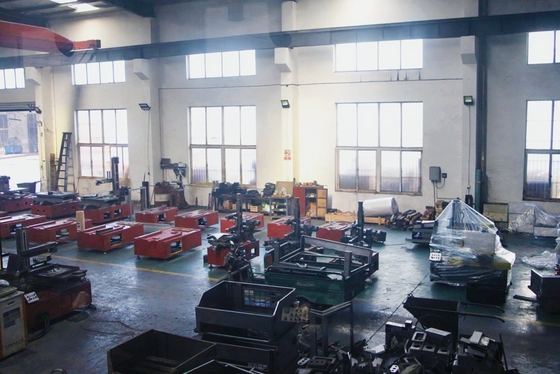

Company Profile
