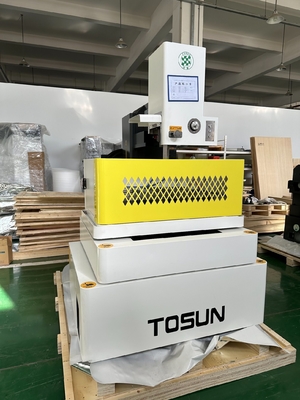

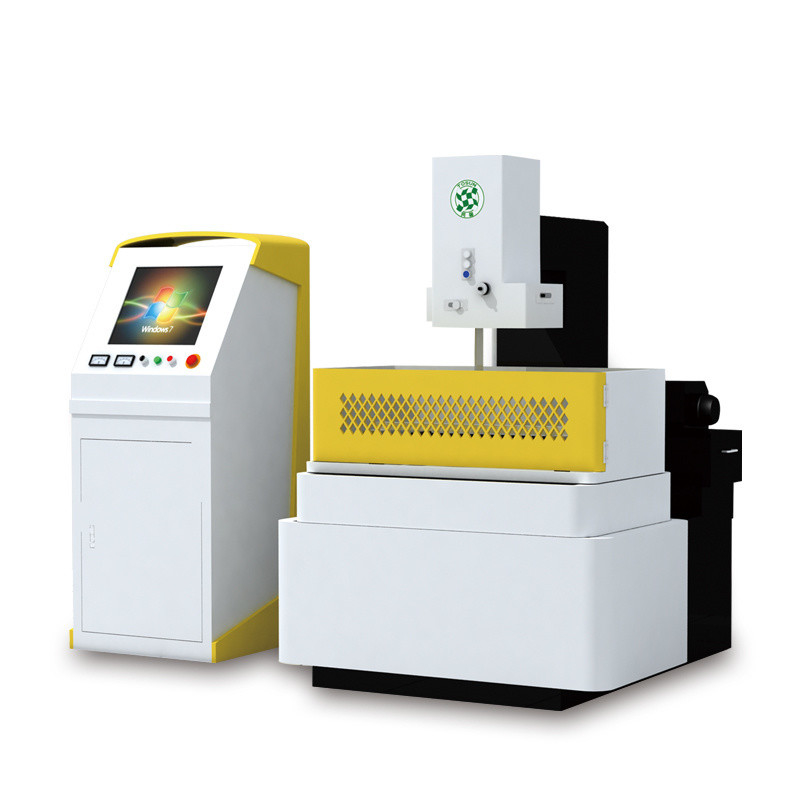

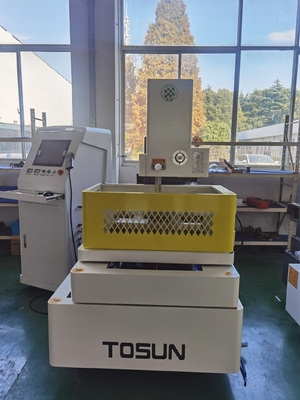

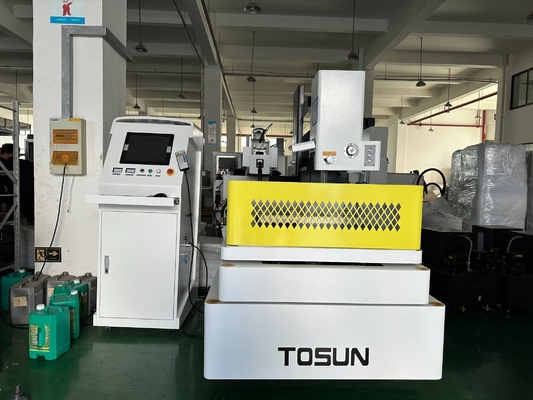

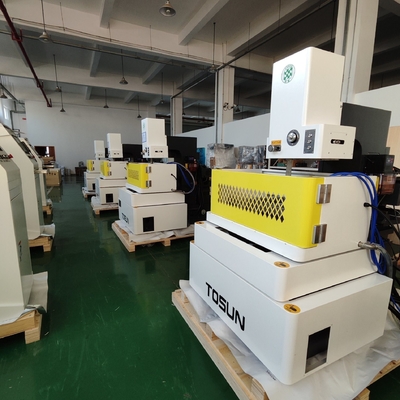

High Speed D400 Wire Cut EDM Machine with Tapper Cutting within Metal-Cutting CNC Tools
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | D400 | Process Usage: | Metal-Cutting CNC Machine Tools |
|---|---|---|---|
| Movement Method: | Linear Control | Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC | Processing Precision: | 0.01~0.02(mm) |
| Performance Classification: | Mid-Range CNC Machine Tools | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 1810× 1350× 2300 |
| Trademark: | TOSUN | Origin: | Suzhou |
| HS Code: | 8456301090 | Supply Ability: | 1000PCS/Year |
| Package Size: | 1810.00cm * 1350.00cm * 2300.00cm | Package Gross Weight: | 2500.000kg |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Application: | Metal | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Product Description
With its high position accuracy, processing accuracy, stable processing, and high consistency, this machine is perfect for the processing of precision molds like progressive dies.
At Jilin Songjiang Tech-trade Co., Ltd., we take pride in offering top-notch products that meet the needs of our customers. Our Servo Motor CNC Wire Cutting EDM Machine (Expert) D400 is no exception. With its advanced features and reliable performance, it's a game-changer in the industry.
Key Features:
- High rigidity cast iron C shape structure
- X/Y axis Panasonic AC servo Motor
- Automatic tighting system
- Linear guide rail (HIWIN)
- Z axis auto lift funtion
- Intergrated electric lubrication system of guide rail and lead screw

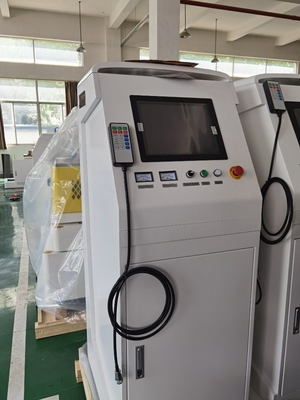

- Industrial computer IPC
- Separating transformer system
- Speical Aluminum cutting device (optional)
| No. | Description | Unit | Specification |
| 1 | Model | D400C | |
| 2 | Worktable Size (L×W) | mm | 720×520 |
| 3 | Worktable Travel (X×Y) | mm | 400×500 |
| 4 | Max. Workpiece Height | mm | 300 |
| 5 | Max. Workpiece Weight | kg | 600 |
| 6 | Machine Dimensions (L×W×H) | mm | 1810×1350×2300 |
| 7 | Machine Weight | kg | 2500 |
Electrical Parameters
| No. | Description | Unit | Specification |
| 1 | Max. cutting speed | mm²/min | ≥240 |
| 2 | Wire electrode diameter | mm | Φ0.08~Φ0.25 |
| 3 | Machining precision (Cutting the octagon in 10mm) |
mm | ±0.003 |
| 4 | Taper/Workpiece height | *±6°/80mm | |
| 5 | Power consumption | kw | 3 |
| 6 | Surface roughness | μm | **Multiple cut Ra≤0.6 |
| 7 | High pressure water tank | Multi-stage filter system | |
| 8 | Wire guided spinneret | Ruby spinneret | |
| 9 | Control method of wire spool, cooling system | Controlled by the program and the NC panel | |
| 10 | Repeating position precision of X, Y-axis | μm | ±1 |
| 11 | Guide rail type | Linear guide rail | |
| 12 | Speed regulation of transport wire tube | Converter | |
| 13 | Number of control axes | 5 | |
| 14 | Power Supply | AC380V, 50Hz |
**The material of workpiece is Cr12 and the height is less than 100mm.
