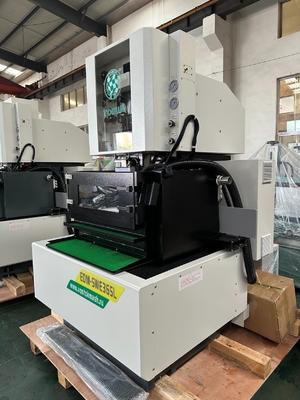

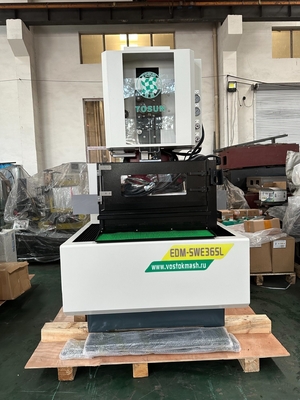

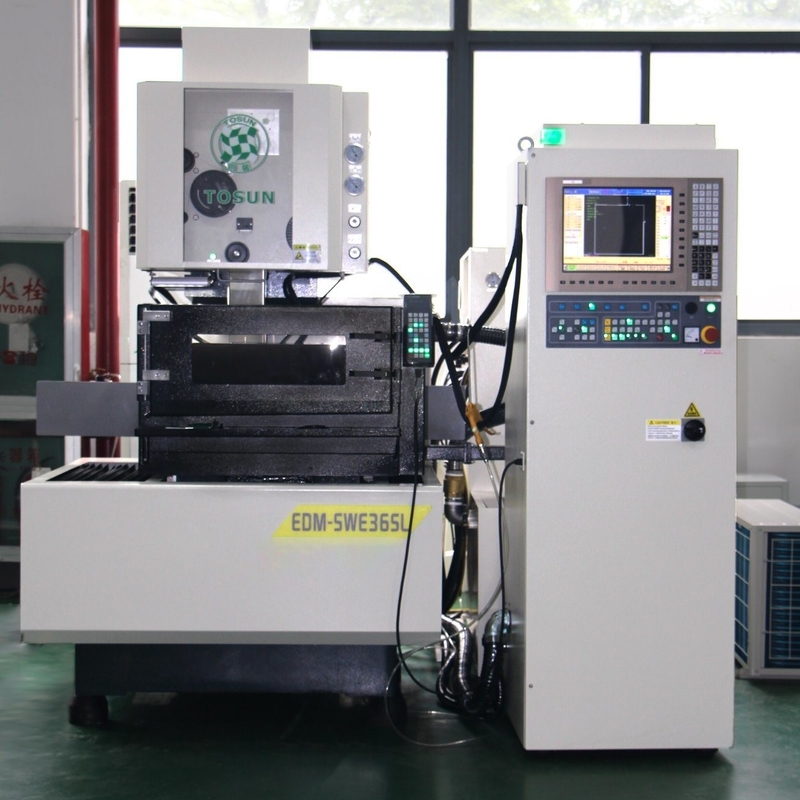

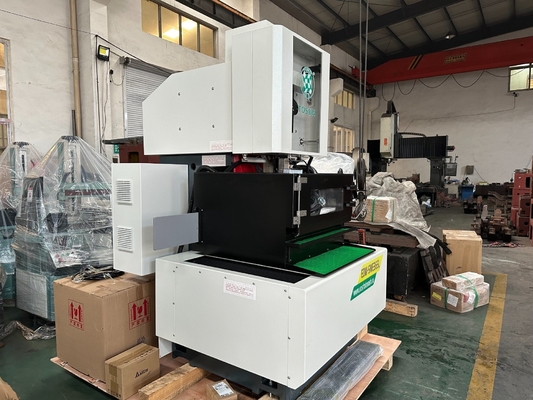

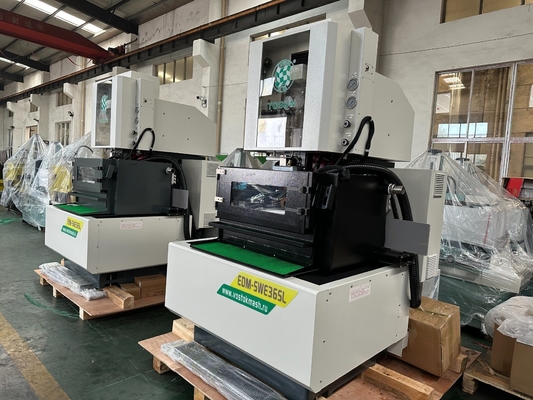

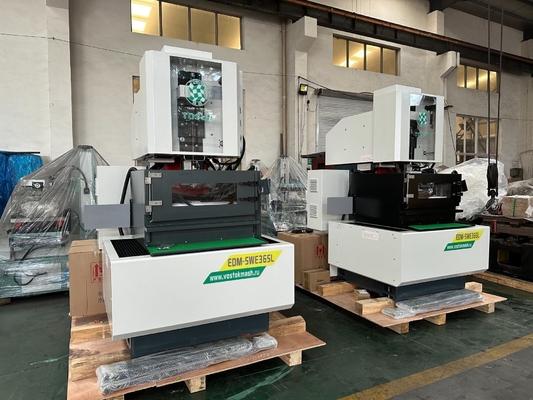

SWE36SL CNC Electric Discharge Brass Wire Cutting Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | SWE36SL | Process Usage: | Metal-Cutting CNC Machine Tools |
|---|---|---|---|
| Movement Method: | Linear Control | Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC | Processing Precision: | 0.01~0.02(mm) |
| Performance Classification: | Mid-Range CNC Machine Tools | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 2200*2650*2200MM/2600KG |
| Trademark: | TOSUN | Origin: | Suzhou |
| HS Code: | 8456301090 | Supply Ability: | 1000PCS/Year |
| Package Size: | 2200.00cm * 2650.00cm * 2200.00cm | Package Gross Weight: | 2600.000kg |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Application: | Metal | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Product Description
1. SWE36SL low speed brass wire cut machine adopts Japanese STK technology and C-type high rigidity design, combined with high-strength main structure castings, to achieve high rigidity and thermal balance characteristics, ensuring the machine's ultra-high processing stability and accuracy.
2. Use the linear motor made of Japanese technology, which features non-contact, frictionless, no kinetic energy conversion and brings outstanding performances that are unparalleled in general screw drive, such as high-speed movement, fast response, vibration free, high positioning accuracy, and no back gap thus no need of replacing screws, realizing the unimaginable high-precision cutting and long-term low-cost processing.
3. Automatic threading function. Paired with automatic threading, it can effectively reduce working time and can be threaded directly at the disconnection point without the need for water or air assistance. Even if the cutting thickness is high (100mm), there can be a success rate of over 90% in automatic threading (the success rate decreases proportionally with the increase of thickness). The starting threading hole needs to be 0.05mm larger than the wire diameter.
4. This machine plays an important role in the field of high-precision mould manufacture, shaped tool machining, hard-machined material and the machine of precise complex part.
| No. | Description | Unit | Specification |
| 1 | X, Y and Z axis travel | mm | 360*250*220 |
| 2 | U V axis travel (U V) | mm | 60X60 |
| 3 | Max. Workpiece Dimensions (L×W×H) | mm | 680*600*200 |
| 4 | Max. Workpiece Weight | kg | 300 |
| 5 | Max. Cutting Speed | mm²/min | 200 |
| 6 | Cutting accuracy | mm | ±0.003 |
| 7 | Surface roughness | μm | Ra0.4-0.45 |
| 8 | X Y rapid feed rate | mm/min | 300 |
| 9 | Motor system | axis | Linear motor for X, Y axis AC Servo motor for U, V, Z axis |
| 10 | Max. Power | kw | 11 |
| 11 | Wire Electrode Diameter | mm | Φ0.15~Φ0.3 (Φ0.25) |
| 12 | Maximum wire feed speed | mm/sec | 300 |
| 13 | Line tension | gf | 300~2500 |
| 14 | Taper/Workpiece Height | mm/sec | ±14.5°/80mm (wide-angled nozzle, DA+DB=15mm) |
| 15 | Filtration capacity |
L | 650 |
| 16 | Filtering method |
Paper | |
| 17 | Ion resin filter |
L | 12 |
| 18 | Water quality control |
Auto | |
| 19 | Liquid temperature control | Auto | |
| 20 | Loop mode | Power MOSFET Transistor | |
| 21 | Maximum output current (A) | 25 | |
| 22 | Dimensions (L×W×H) | mm | 2000*2265*2200 |
| 23 | Net weight (include power box and water system) | kg | 2600 |
| No. | Description | Qty | Unit |
| 1 | Machine body | 1 | set |
| 2 | Paper filter | 2 | pc |
| 3 | Diamond guides (0.26mm) | 2 | pc |
| 4 | Water cover | 2 | pc |
| 5 | Conductive block | 2 | pc |
| 6 | Diamond guide remove jig | 1 | set |
| 7 | Brass wire | Ø0.25mm | 5kg |
| 8 | Tools | 4 | pc |
| 9 | Spark vertical correction block | 1 | pc |
| 10 | Resin | 3L | 1 |
| 11 | Voltage regulator | 1 | pc |
| 12 | Grating ruler | 1 | pc |
| 13 | Water chiller | 1 | set |
