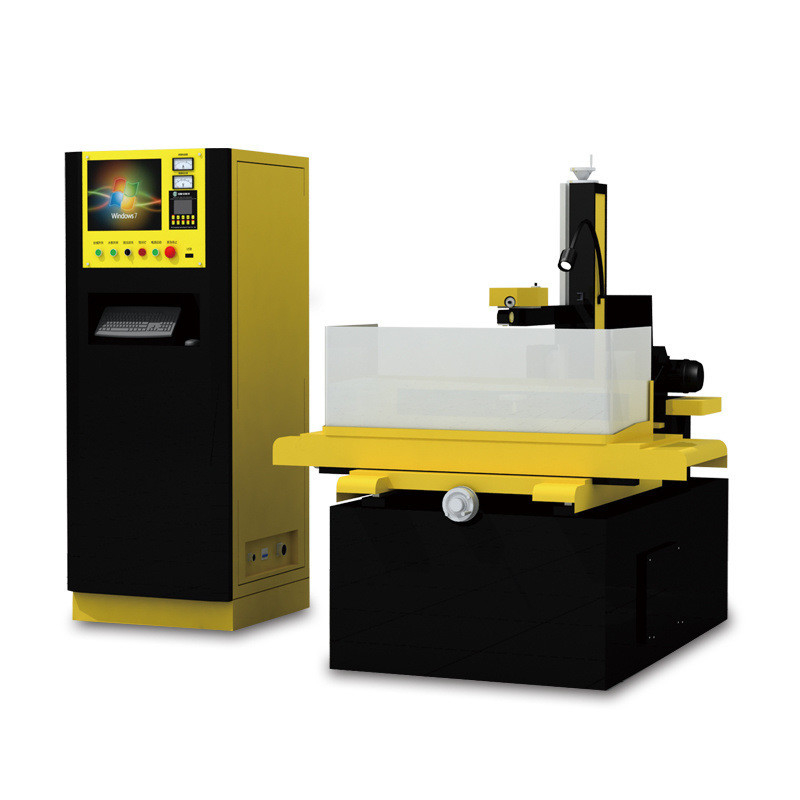

SE320 Molybdenum Wire Cut EDM Machine with Taper Cutting

SE320 Molybdenum Wire Cut EDM Machine with Taper Cutting

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: SE320 Precision: High Precision
Condition: New Transport Package: Wooden Case
Specification: 1650x1180x1650 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Type: EDM
Application: Metallurgy, Universal, Stainless Steel, Electrical, Aviation, Light Industry Processing Method: Spark Working
Automatic Grade: Automatic Customization: Available | Customized Request

Product Description

Product Description

CNC Molybdenum Wire Cut EDM Machine with Taper Cutting SE320 is a special machine designed for mass and high efficiency processing. The machine has high efficiency, high processing accuracy, good smoothness of multiple cutting, simple operations, and high consistency of machine tool processing. The machine is suitable for cutting work pieces in large quantities. Its processing effiency is about 5%-10% higher than that of other similar machines.

Product Parameters


 Equipment Specification
No. Description Unit Specification
1 Model   SE320
2 Worktable Size (L×W) mm 455×625
3 Worktable Travel (X×Y) mm 350x450
4 Max. Workpiece Height mm 400
5 Max. Workpiece Weight kg 300
6 Machine Dimensions (L×W×H) mm 1650x1180x1650
7 Machine Weight kg 1200

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18~Φ0.25
3 Machining Precision                              (Cutting the octagon) mm ≤0.012/10мм
4 Taper/Workpiece Height   6°/100mm
5 Power Consumption kw 3
6 Surface roughness μm Single cut Ra<2.5
*Multi cut Ra<1.0
7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual, transport wire tube, cooling system   Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis   railroad rail
12 Speed regulation of transport wire tube   Integrated frequency inverter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz
Electrical Parameters

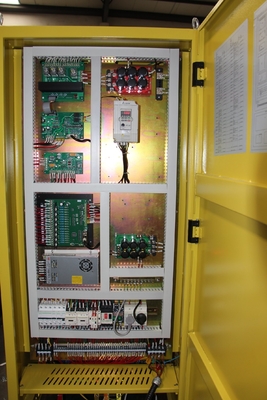

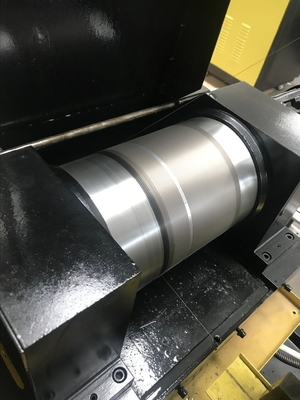

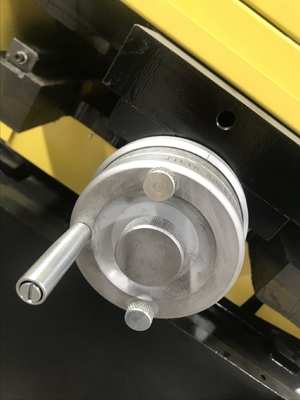

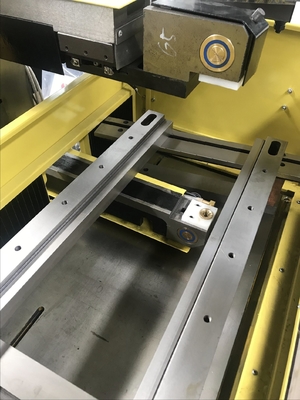

Detailed Photos



CNC Molybdenum Wire Cut EDM Machine with Taper Cutting Se320

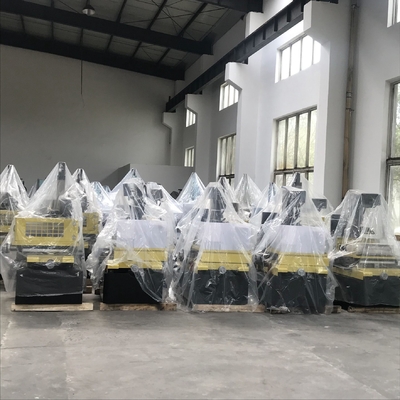

Packaging & Shipping

CNC Molybdenum Wire Cut EDM Machine with Taper Cutting Se320

CNC Molybdenum Wire Cut EDM Machine with Taper Cutting Se320

Company Profile

CNC Molybdenum Wire Cut EDM Machine with Taper Cutting Se320
CNC Molybdenum Wire Cut EDM Machine with Taper Cutting Se320

CNC Molybdenum Wire Cut EDM Machine with Taper Cutting Se320
