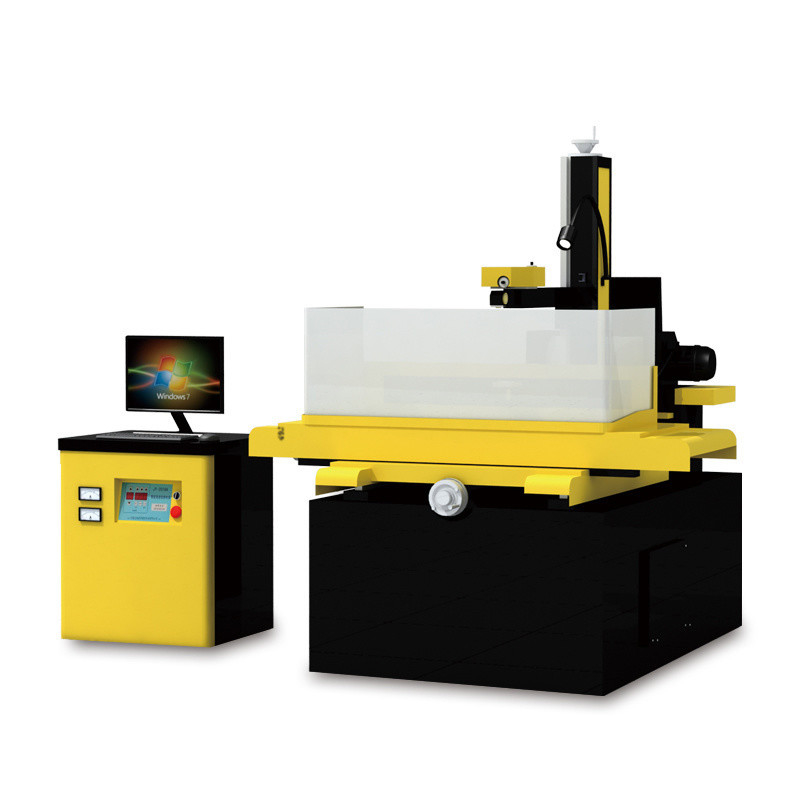

Smart CNC Medium Speed EDM Wire Cutting Machine M630

Smart CNC Medium Speed EDM Wire Cutting Machine M630

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: M630 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 2265x1865x2100 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

Experience the perfect blend of efficiency and affordability with our Smart CNC Medium Speed EDM Wire Cutting Machine M630. Designed specifically for individual processors and small to medium-sized enterprises, this machine is the ideal solution for those seeking to optimize their wire cutting processes.

With its compact design, our machine saves valuable space in your workspace, allowing you to maximize efficiency without compromising on performance. The embedded control system ensures fast processing speeds, while also minimizing the need for maintenance, saving you time and resources.

The equipment is suitable for customers who require higher processing efficiency and lower roughness and accuracy.

Trust Jilin Songjiang Tech-trade Co., Ltd., a reputable company known for delivering high-quality products and excellent customer service. With a one-year warranty and online support, you can have peace of mind knowing that we stand behind our products.

Product Parameters


Equipment Specification
No. Description Unit Specification
  Model   M630
1 Worktable Size (L×W) mm 670x1000
2 Worktable Travel (X×Y) mm 630x800
3 Max. Workpiece Height mm 700
4 Max. Workpiece Weight kg 900
5 Machine Dimensions (L×W×H) mm 2265x1865x2100
6 Machine Weight kg 3200

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18-φ0.25
3 Machining Precision (Cutting the octagon in 10mm) mm ≤0.012
4 Taper/Workpiece Height   6°/100mm
5 Power Consumption kw ≤2
6 Surface roughness um Single cut Ra<3

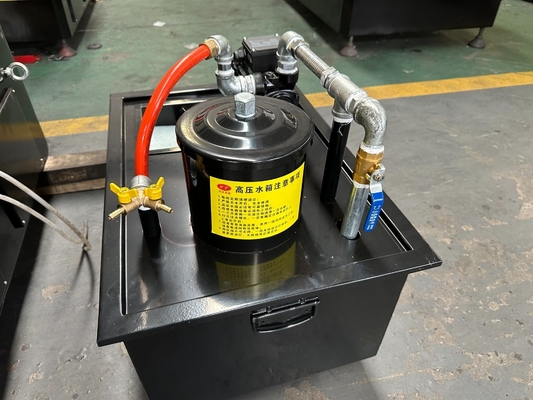

7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual, transport wire tube, cooling system   Controlled by the
program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis   V-groove rail
12 Speed regulation of transport wire tube   converter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

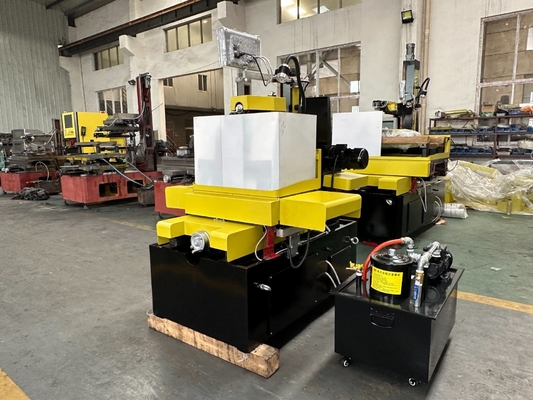

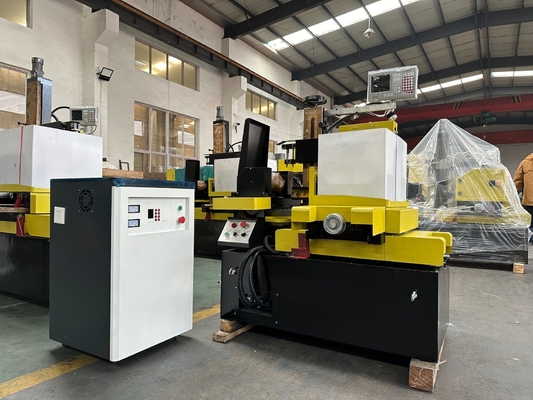

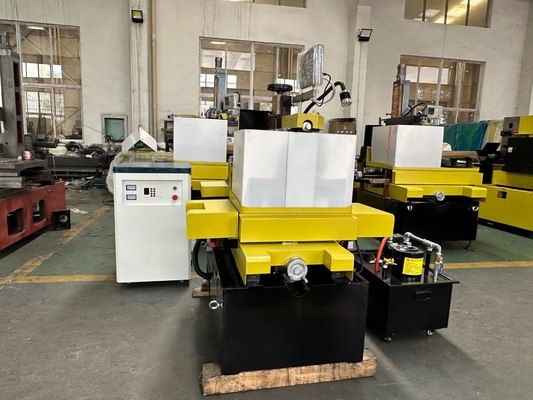

Detailed Photos



Smart CNC Medium Speed EDM Wire Cutting Machine M630

Packaging & Shipping

Smart CNC Medium Speed EDM Wire Cutting Machine M630

Smart CNC Medium Speed EDM Wire Cutting Machine M630

Company Profile

Smart CNC Medium Speed EDM Wire Cutting Machine M630
Smart CNC Medium Speed EDM Wire Cutting Machine M630

Smart CNC Medium Speed EDM Wire Cutting Machine M630
