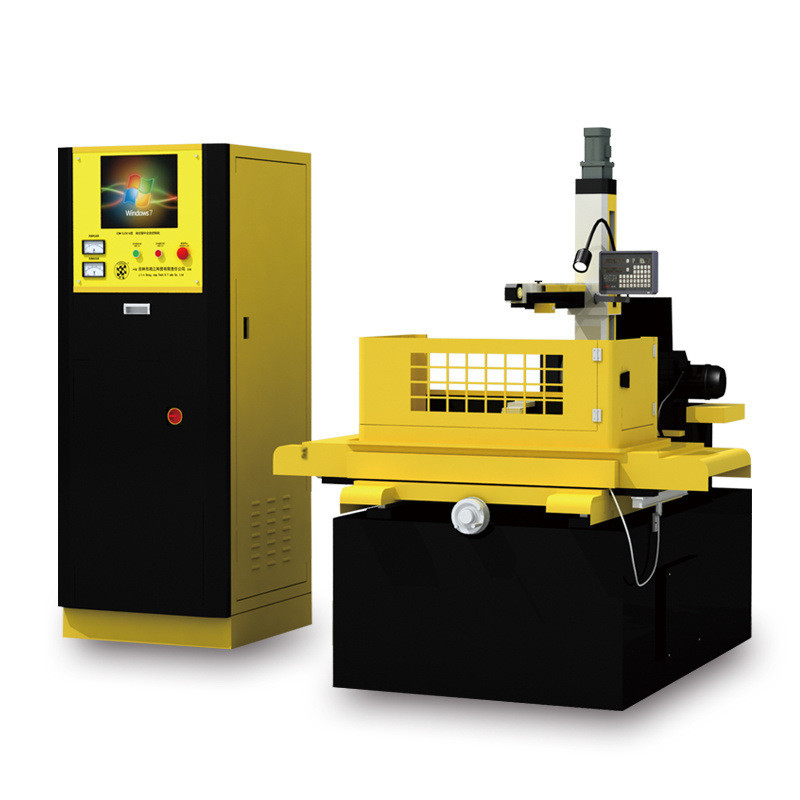

Mid-Range CNC Machine Tool for Precision Cutting CNC Wedm Molybdenum Wire Cutting Machine

Mid-Range CNC Machine Tool for Precision Cutting CNC Wedm Molybdenum Wire Cutting Machine

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: S800 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Mid-Range CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 2500× 2150× 2900 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

CNC WEDM Molybdenum Wire Cutting Machine Tool S800 is the perfect combination of high cutting efficiency and good cutting smoothness. It has the characteristics of stable processing performance, convenient setting of operation and setting, high precision and good consistency in processing.
The equipment is suitable for work piece processing with relatively high precision and roughness requirements. And the equipment is also suitable for processing molds.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model   S800
2 Worktable Size (L×W) mm 880×1540
3 Worktable Travel (X×Y) mm 800×1000
4 Max. Workpiece Height mm 700
5 Max. Workpiece Weight kg 4000
6 Machine Dimensions (L×W×H) mm 2500×2150×2900
7 Machine Weight kg 5500

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 200
2 Wire Electrode Diameter mm Φ0.10~Φ0.25
3 Machining Precision (Cutting the octagon in 10mm) mm ≤0.012/10мм
4 Taper/Workpiece Height   6°/100mm
5 Power Consumption kw 3
6 Surface roughness um Single cut Ra<2.0,
*Multiple cut Ra<0.8
7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of wire spool, cooling system   Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type   Line guide rail
12 Speed regulation of transport wire tube   Converter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

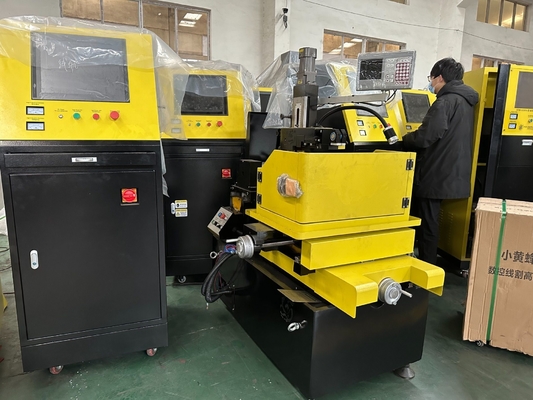

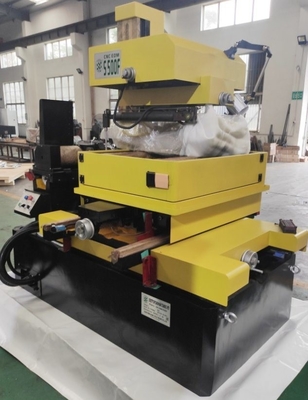

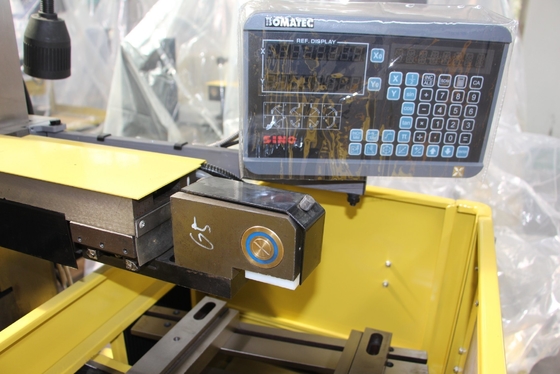

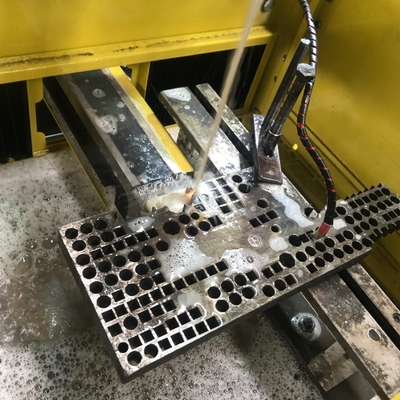

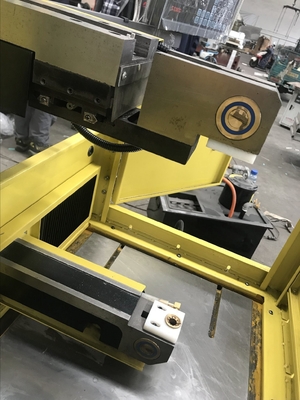

Detailed Photos



CNC Wedm Molybdenum Wire Cutting Machine Tool

Packaging & Shipping

CNC Wedm Molybdenum Wire Cutting Machine Tool

CNC Wedm Molybdenum Wire Cutting Machine Tool

Company Profile

CNC Wedm Molybdenum Wire Cutting Machine Tool
CNC Wedm Molybdenum Wire Cutting Machine Tool

CNC Wedm Molybdenum Wire Cutting Machine Tool
