Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: A320 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 1750× 1300× 2050 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

Servo Motor CNC Electroerosive Wire Cut Machine (Advanced) A320C is our state-of-the-art wire cutting machine. With its exceptional cutting accuracy and consistency, this machine is perfect for precision work piece processing and precision die processing.

At Jilin Songjiang Tech-trade Co., Ltd., we take pride in delivering top-notch equipment that meets the highest standards. Our CNC EDM Electroerosive Machine A320C is no exception. With its advanced features and cutting-edge technology, it's a game-changer in the industry.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model

A320
2 Worktable Size (L×W) mm 550×700
3 Worktable Travel (X×Y) mm 320×400
4 Max. Workpiece Height mm 250
5 Max. Workpiece Weight kg 350
6 Machine Dimensions (L×W×H) mm 1750×1250×2050
7 Machine Weight kg 1600

Electrical Parameters

No. Description Unit Specification
1 Max. Cutting Speed mm²/min 200
2 Wire Electrode Diameter mm Φ0.10~Φ0.25
3 Machining Precision (Cutting the octagon in 10mm) mm ≤0.010
4 Taper/Workpiece Height

*3°/100mm
5 Power Consumption kw 3kw
6 Surface roughness μm Single cut Ra<2.0,
**Multiple cut Ra<0.8
7 High pressure water tank

Multi-stage filter system
8 Wire guided spinneret

Ruby spinneret
9 Control method of wire spool, cooling system

Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type

Line guide rail
12 Speed regulation of transport wire tube

Converter
13 Number of control axes

5
14 Power Supply

AC380V, 50Hz

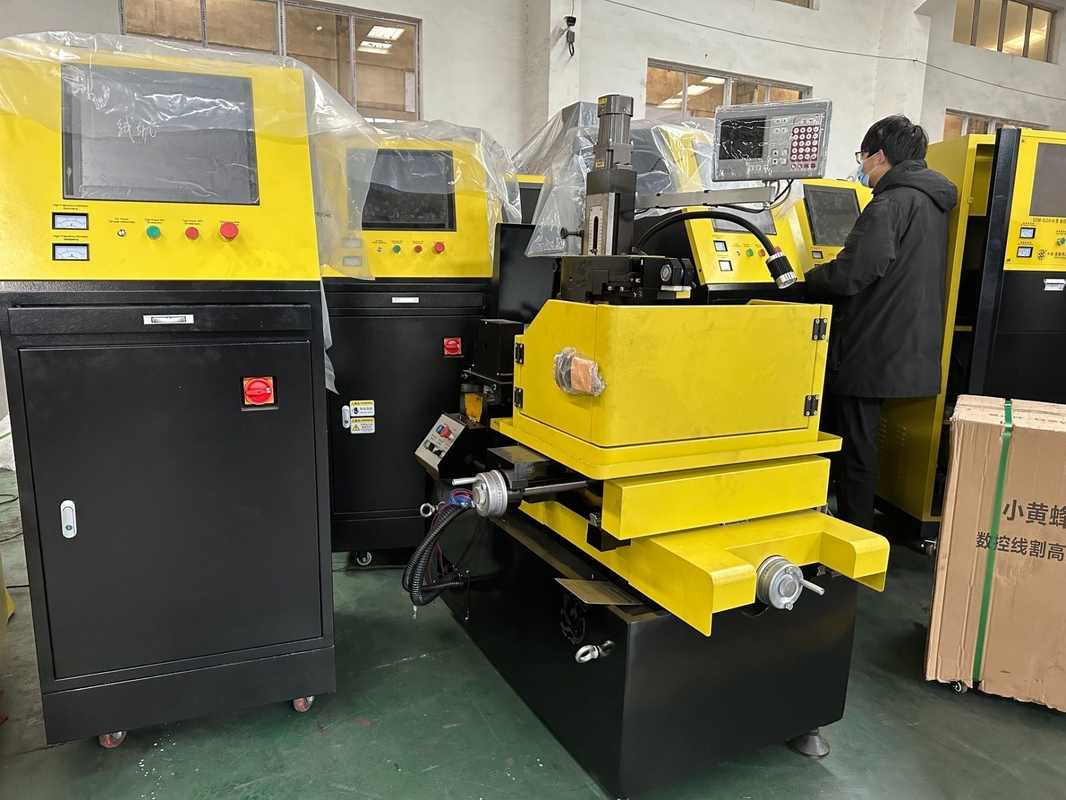

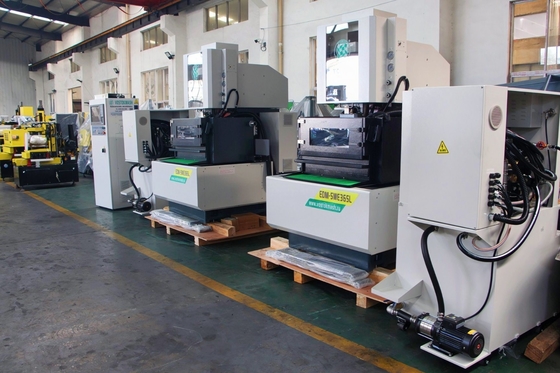

Detailed Photos

Electrical Discharge Wire Cut Machine Tool



Packaging & Shipping

Electrical Discharge Wire Cut Machine Tool

Electrical Discharge Wire Cut Machine Tool

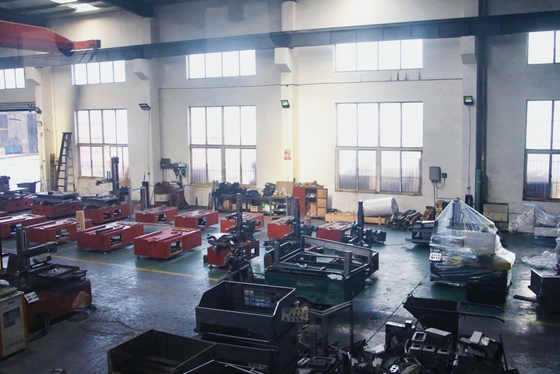

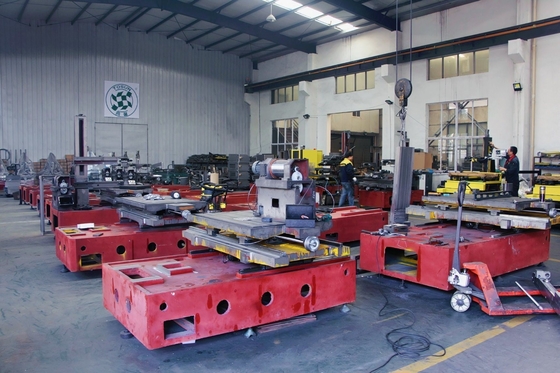

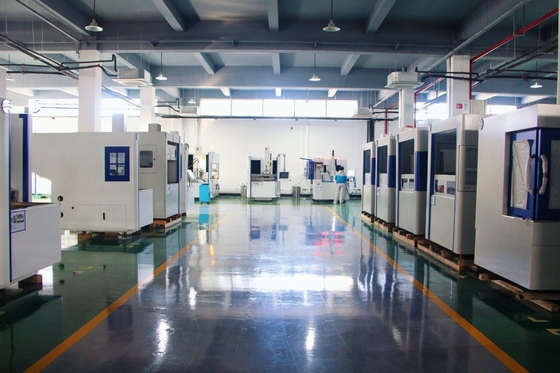

Company Profile

Electrical Discharge Wire Cut Machine Tool
Electrical Discharge Wire Cut Machine Tool

Electrical Discharge Wire Cut Machine Tool
