Water Cooling System 12W UV Laser Printing Marking Machine for Manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | GDCT-UV12W-F | Laser Wavelength: | UV Laser |
|---|---|---|---|
| Laser Classification: | Solid Laser | Type: | Optical Fiber Laser Marking Machine |
| Marking Method: | Scanning Marking | Transport Package: | Wooden Case |
| Trademark: | TOSUN | Origin: | China |
| HS Code: | 8456100090 | Supply Ability: | 1000PCS/Year |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Laser Visibility: | Invisible | Applicable Material: | Metal And Nonmetal |
| Cooling System: | Water Cooling | Technical Class: | Continuous Wave Laser |
| Customization: | Available | Customized Request | ||
Product Description
The UV laser marking machine uses an industrial-grade water-cooled all-solid-state UV laser as the light source. The light spot is finer. Because it is a cold process, so the heat affected zone is small. Due to the good beam quality, UV laser marking machines are often used for fine marking. It is particularly suitable for ultra-fine processing auto parts, wine bottle caps, cosmetics, medicines, plastic nylon and medical equipment PE polymer materials, communications devices, etc.
- The core components are assembled with imported accessories. Reliable quality and easy disassembly and replacement.
- The stable working range of the resonant cavity is wide, the mechanical design is completely sealed, and the air tightness test has reached the national standard Class I. Its optical design can maximize the efficiency of the module and has strong environmental adaptability.
- Ensure narrow pulse width, high peak power, finer marking and deeper depth.
- Using water cooling, the whole machine is small in size and has high cooling accuracy, which effectively ensures the stability of the whole machine.
- It has a positioning system, manual focus adjustment, and the optical drive seat is double-sealed.
- It can realize the mixed arrangement of graphics, text and numbers and complete the engraving at one time;
- Realize graphics, text, one-by-one or digital incremental engraving, etc.
- Four universal fixed casters are installed at the bottom.

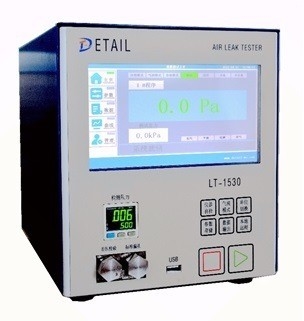

- Use LT-1530 differential pressure gas leak detector, which has the characteristics of high measurement accuracy, good repeatability, high efficiency, large screen panel display, etc. The test pressure is 0.05~0.6MPa.
| Laser source | 355-12W (imported crystals) |
| Power supply | Matched with Laser |
| Beam expander | 12T by US26 |
| Galvanometer | Made in China |
| Field lens | Made in China |
| Cabinet | Original |
| Computer | Touch screeen industrial computer ((dual-core 2.7/4G memory/128G solid state drive/19'' LCD)) |
| Software | Special UV software, with red light positioning system |
| Laser wavelength | UV355nm |
| Power | 12W |
| Engraving range | 110mm×110mm |
| Marking speed | 10000mm/S |
| Marking depth | 0.01-0.2mm (adjustable depending on material) |
| Pulse frequency | 30-80KHZ |
| Repeat accuracy | 0.001mm |
