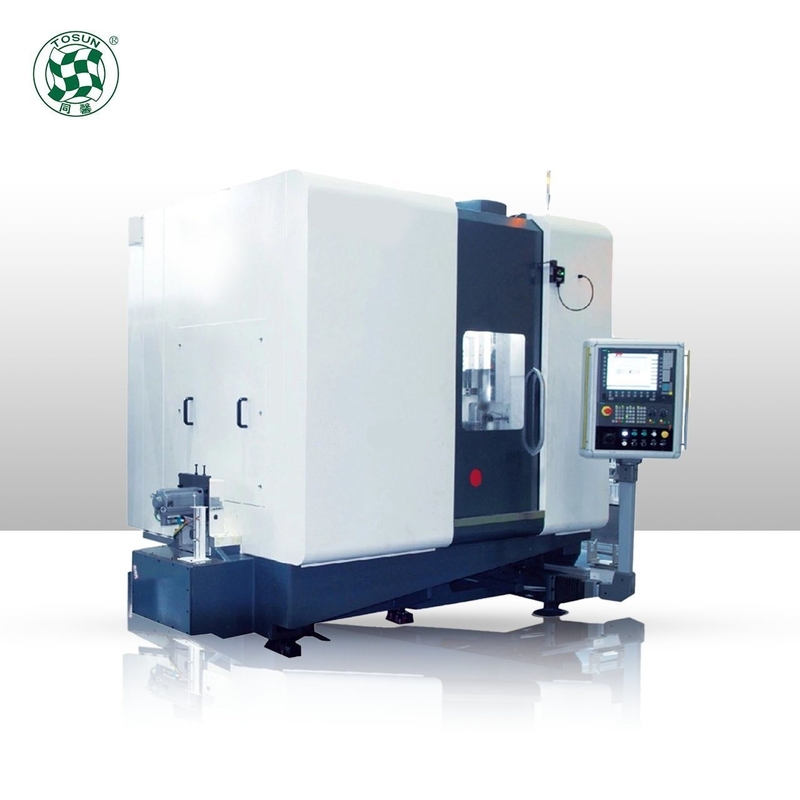

Precision CNC Worm Wheel Gear Grinding Machine YS7232G Customized Request Option
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | YS7232G | Automatic Grade: | Automatic |
|---|---|---|---|
| Precision: | High Precision | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 4100*3100*3550mm/20t |
| Trademark: | TOSUN | Origin: | Tianjin |
| HS Code: | 8456301090 | Supply Ability: | 1000PCS/Year |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Type: | Tool Grinding Machine | Processing Object: | Gear |
| Abrasives: | Grinding Wheel | Controlling Mode: | CNC |
| Customization: | Available | Customized Request | ||
Product Description
| No. | Description | Unit | Specification |
| Model | YS7232G | ||
| 1 | Max. workpiece diameter | mm | 320 |
| 2 | Max. workpiece module | mm | 6 |
| 3 | Max. speed of grinding wheel spindle | r/min | 10000 |
| 4 | Max. speed of workpiece spindle | r/min | 2000 |
| 5 | Distance from grinding wheel center to worktable rotation center | mm | 50~450 |
| 6 | Grinding wheel installation dimensions | mm | Φ300×Φ115×160 |
| 7 | Max. installation size of roller | mm | Φ140×Φ52×40 |
| 8 | Electric spindle power | kW | 28.5 |
