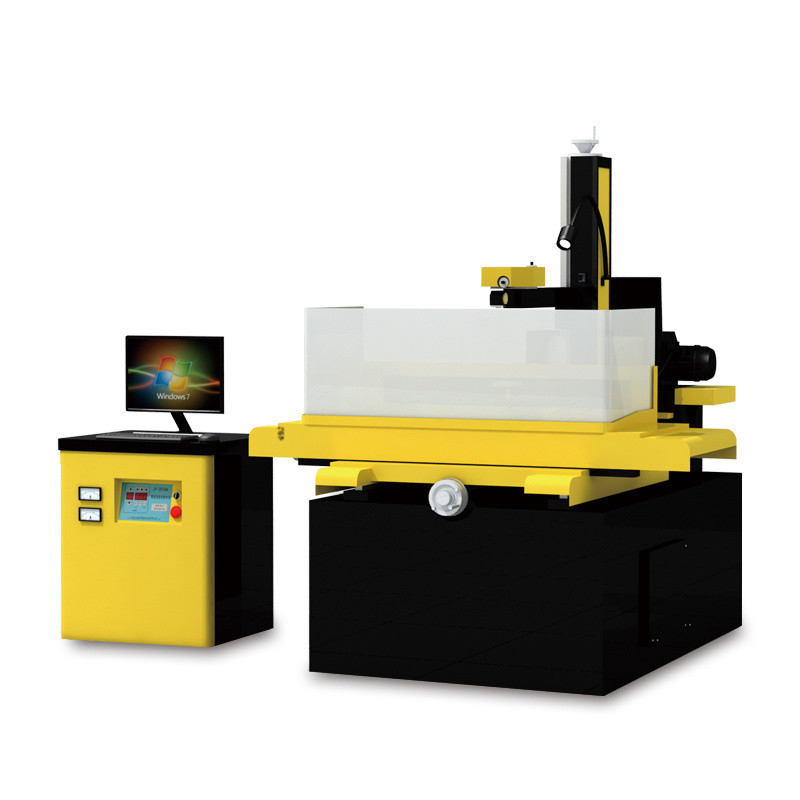

M250 Single Cut CNC Medium Speed Wire Cut EDM Machine

M250 Single Cut CNC Medium Speed Wire Cut EDM Machine

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: M250 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 1500× 900× 1450 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

Smart type CNC EDM Wire Cutting Machine is an economical and efficient machine designed for individual processors and small-medium-sized enterprises. It can save space and the speed is fast. At the same time, it reduced the maintenance by virtue of embedded control system. The equipment is suitable for customers who require high processing efficiency and low roughness and accuracy.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model   M250
2 Worktable Size (L×W) mm 300×490
3 Worktable Travel (X×Y) mm 250×320
4 Max. Workpiece Height mm 350
5 Max. Workpiece Weight kg 250
6 Machine Dimensions (L×W×H) mm 1500×900×1450
7 Machine Weight kg 1000

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18-φ0.25
3 Machining Precision                              (Cutting the octagon) mm ≤0.012
4 Taper/Workpiece Height   6°/100mm
5 Power Consumption kw ≤2
6 Surface roughness um Single cut Ra<3

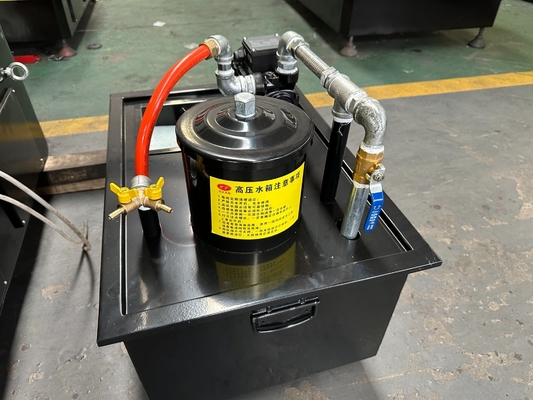

7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual,     transport wire tube, cooling system   Controlled by the
program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis   railroad rail
12 Speed regulation of transport wire tube   Integrated frequency inverter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

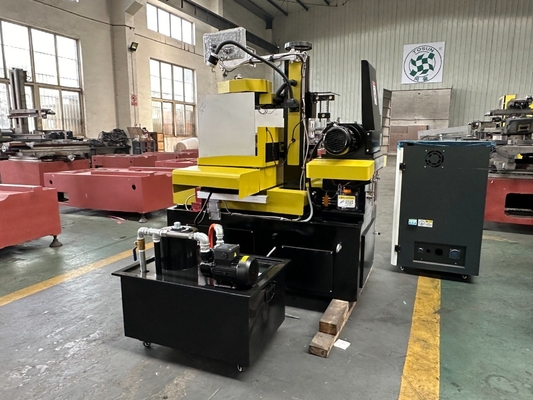

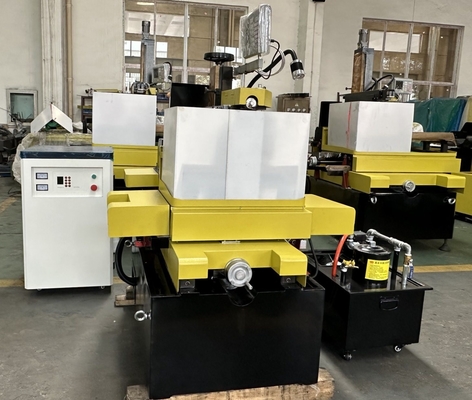

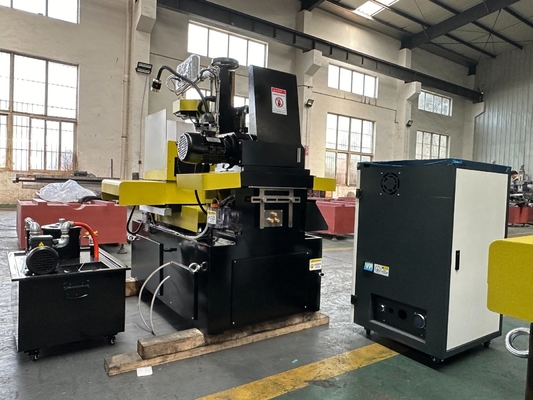

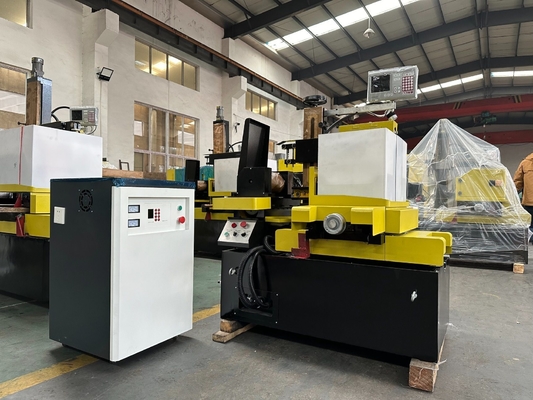

Detailed Photos



Single Cut CNC Medium Speed Wire Cut EDM Machine M250

Packaging & Shipping

Single Cut CNC Medium Speed Wire Cut EDM Machine M250

Single Cut CNC Medium Speed Wire Cut EDM Machine M250

Company Profile

Single Cut CNC Medium Speed Wire Cut EDM Machine M250
Single Cut CNC Medium Speed Wire Cut EDM Machine M250

Single Cut CNC Medium Speed Wire Cut EDM Machine M250
