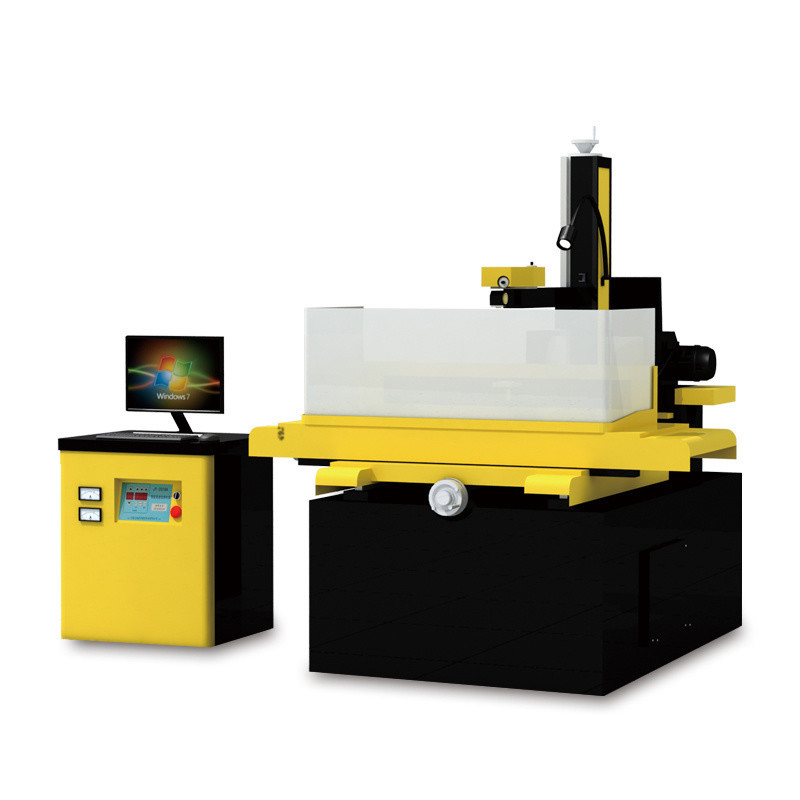

Factory Price CNC Wire Cut EDM Dk7755 Smart Type

Factory Price CNC Wire Cut EDM Dk7755 Smart Type

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: M500 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 2070x1850x2100 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

Smart type CNC EDM Wire Cutting Machine is an economical and efficient machine designed for individual processors and small-medium-sized enterprises. It can save space and the speed is fast. At the same time, it reduced the maintenance by virtue of embedded control system. The equipment is suitable for customers who require high processing efficiency and low roughness and accuracy.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model   M500
2 Worktable Size (L×W) mm 600x900
3 Worktable Travel (X×Y) mm 550x800
4 Max. Workpiece Height mm 600
5 Max. Workpiece Weight kg 700
6 Machine Dimensions (L×W×H) mm 2070x1850x2100
7 Machine Weight kg 2500

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18-φ0.25
3 Machining Precision                              (Cutting the octagon) mm ≤0.012
4 Taper/Workpiece Height   6°/100mm
5 Power Consumption kw ≤2
6 Surface roughness um Single cut Ra<3

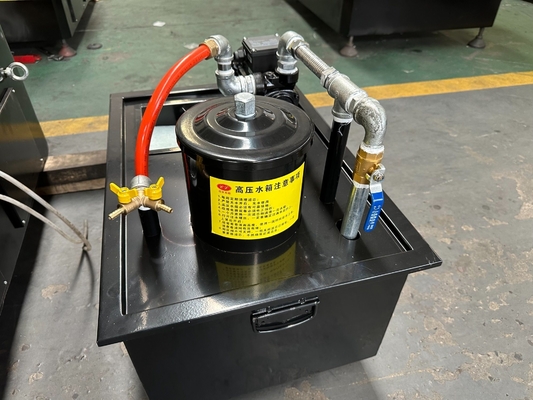

7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual,     transport wire tube, cooling system   Controlled by the
program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis   railroad rail
12 Speed regulation of transport wire tube   Integrated frequency inverter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

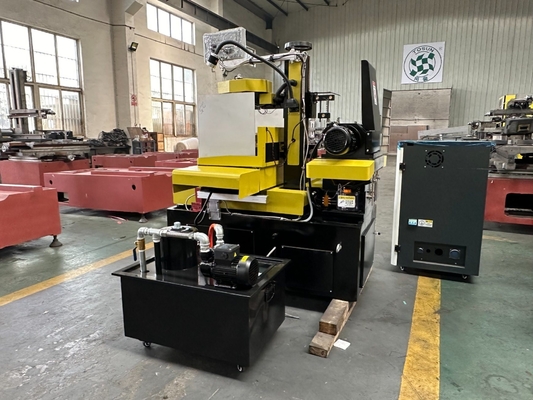

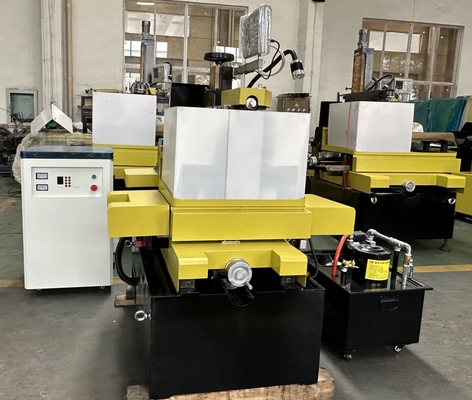

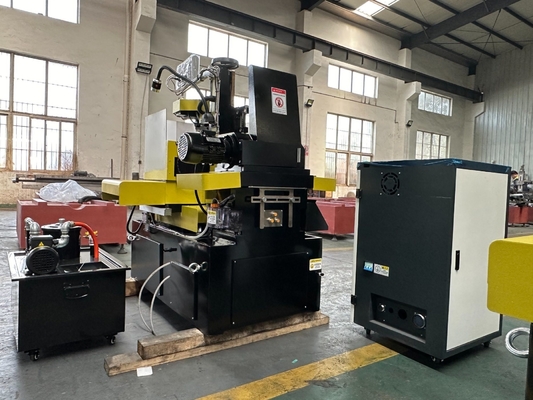

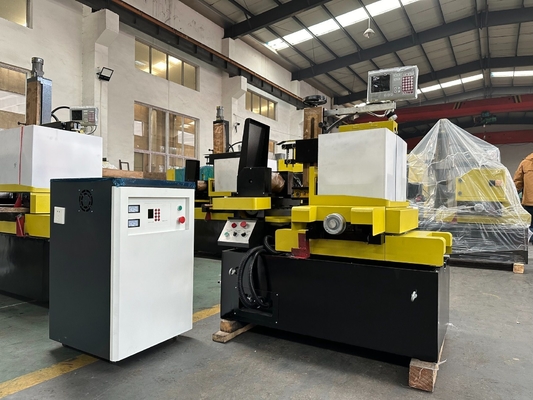

Detailed Photos



CNC Wire Cut EDM Dk7755 (Smart Type)

Packaging & Shipping

CNC Wire Cut EDM Dk7755 (Smart Type)

CNC Wire Cut EDM Dk7755 (Smart Type)

Company Profile

CNC Wire Cut EDM Dk7755 (Smart Type)
CNC Wire Cut EDM Dk7755 (Smart Type)

CNC Wire Cut EDM Dk7755 (Smart Type)
