Super Economical SE500 CNC WEDM Wire Cut Machine

Super Economical SE500 CNC WEDM Wire Cut Machine

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: SE500 Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 2070x1850x2100 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

CNC Electric Spark Wire Cutting Machine SE500 is a special machine designed for mass and high efficiency processing. The machine has high efficiency, high processing accuracy, good smoothness of multiple cutting, simple operations, and high consistency of machine tool processing. The machine is suitable for cutting work pieces in large quantities. Compared to similar machines, our SE500 offers a remarkable 5%-10% increase in processing efficiency, saving you valuable time and resources.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model   SE500
2 Worktable Size (L×W) mm 600x900
3 Worktable Travel (X×Y) mm 550x800
4 Max. Workpiece Height mm 600
5 Max. Workpiece Weight kg 700
6 Machine Dimensions (L×W×H) mm 2070x1850x2100
7 Machine Weight kg 2500

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 180
2 Wire Electrode Diameter mm Φ0.18~Φ0.25
3 Machining Precision (Cutting the octagon) mm ≤0.012/10мм
4 Taper/Workpiece Height   6°/100mm
5 Power Consumption kw 3
6 Surface roughness μm Single cut Ra<2.5
*Multi cut Ra<1.0
7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of Z-axis manual, transport wire tube, cooling system   Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type of U,V-axis   railroad rail
12 Speed regulation of transport wire tube   Integrated frequency inverter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

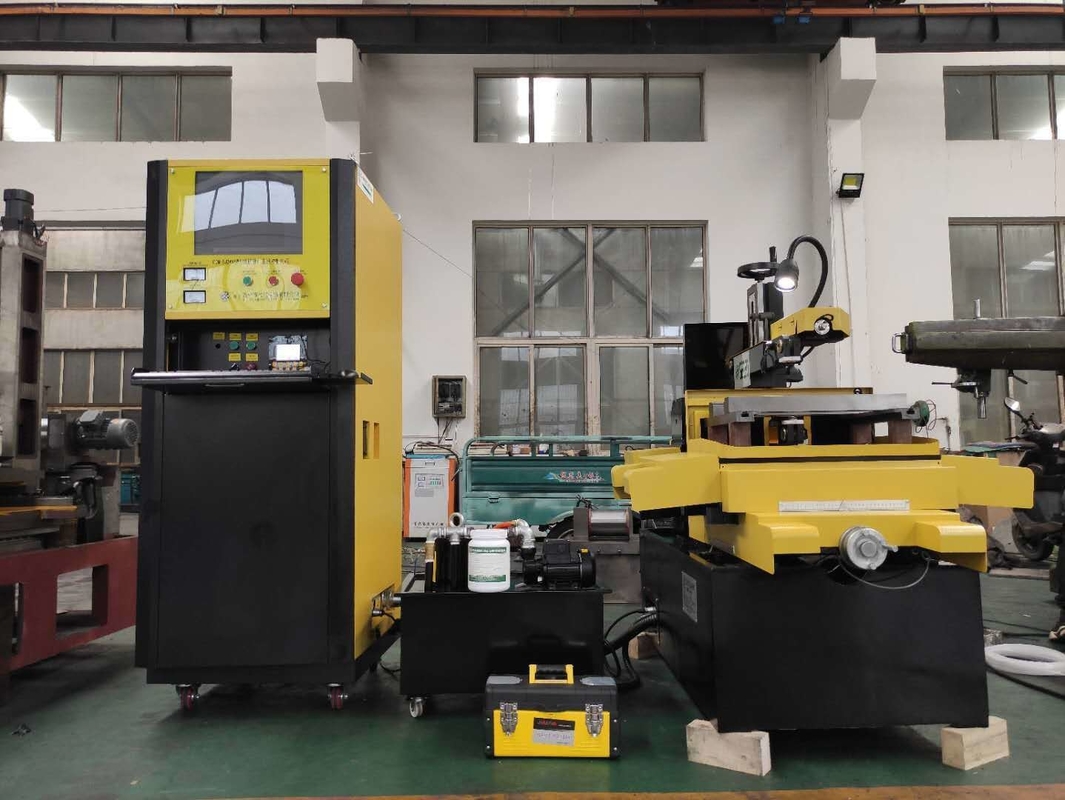

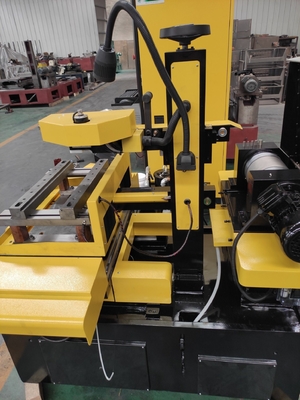

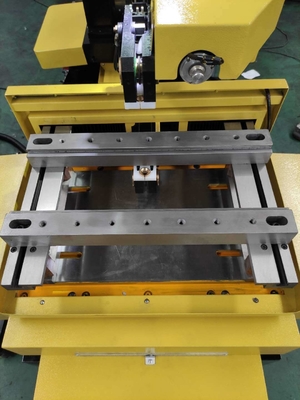

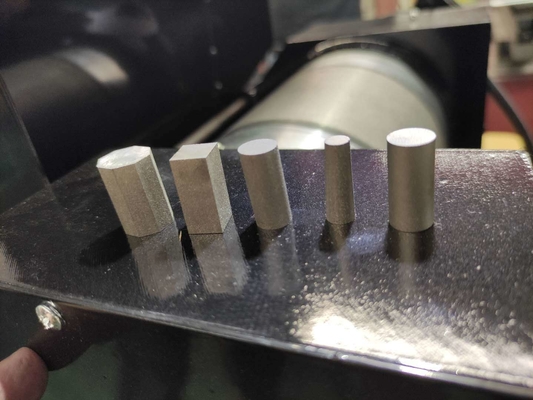

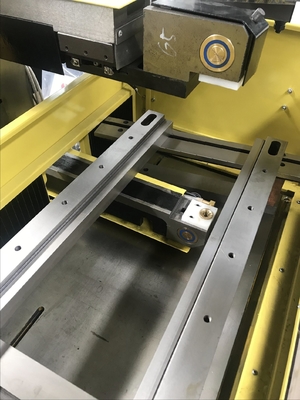

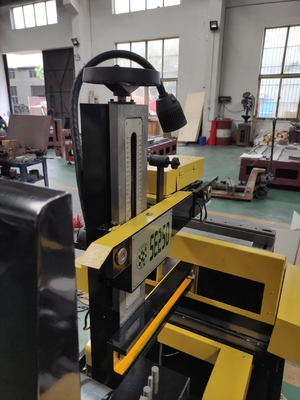

Detailed Photos



Super Economical CNC Wedm Wire Cut Machine Se500

Packaging & Shipping

Super Economical CNC Wedm Wire Cut Machine Se500

Super Economical CNC Wedm Wire Cut Machine Se500

Company Profile

Super Economical CNC Wedm Wire Cut Machine Se500
Super Economical CNC Wedm Wire Cut Machine Se500

Super Economical CNC Wedm Wire Cut Machine Se500
