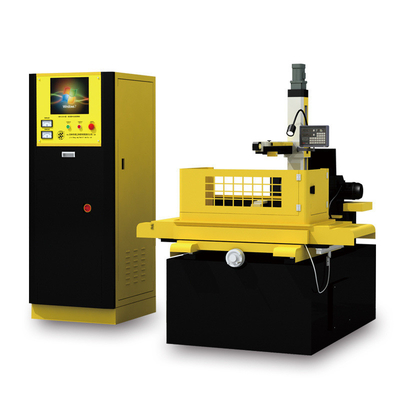

Metal-Cutting CNC Machine Tools Electro Wire Cut S500f for Metal Processing Solutions

Metal-Cutting CNC Machine Tools Electro Wire Cut S500f for Metal Processing Solutions

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: S500F Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Economical CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 2050× 1600× 2150 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description


Product Description

Standard type CNC Wire Cutting Discharge Machine S500F is the perfect combination of high cutting efficiency and good cutting smoothness. It has the characteristics of stable processing performance, convenient setting of operation and setting, high precision and good consistency in processing.
The equipment is suitable for work piece processing with relatively high precision and roughness requirements. And the equipment is also suitable for processing molds.

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model   S500F
2 Worktable Size (L×W) mm 620×930
3 Worktable Travel (X×Y) mm 500×630
4 Max. Workpiece Height mm 600
5 Max. Workpiece Weight kg 800
6 Machine Dimensions (L×W×H) mm 2000×1350×2000
7 Machine Weight kg 2800

Electrical Parameters
No. Description Unit Specification
1 Max. Cutting Speed mm²/min 200
2 Wire Electrode Diameter mm Φ0.10~Φ0.25
3 Machining Precision (Cutting the octagon in 10mm) mm ≤0.012/10мм
4 Taper/Workpiece Height   60°/80mm
5 Power Consumption kw 3
6 Surface roughness um Single cut Ra<2.0,
*Multiple cut Ra<0.8
7 High pressure water tank   Multi-stage filter system
8 Plastic water jet plate; Bronze spout
9 Control method of wire spool, cooling system   Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type   Line guide rail
12 Speed regulation of transport wire tube   Converter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz

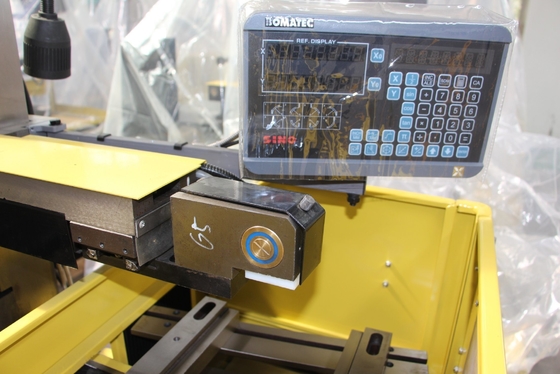

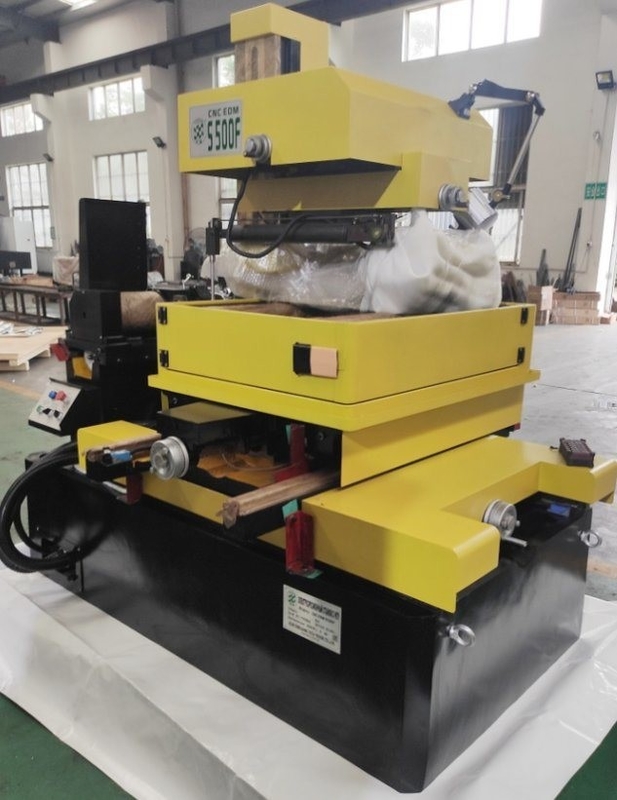

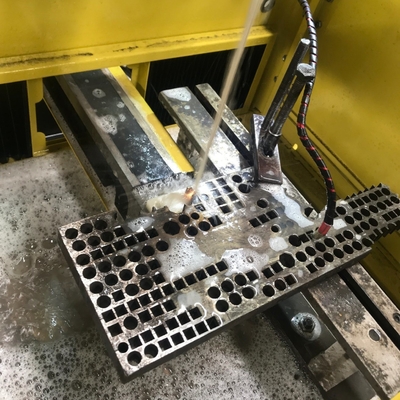

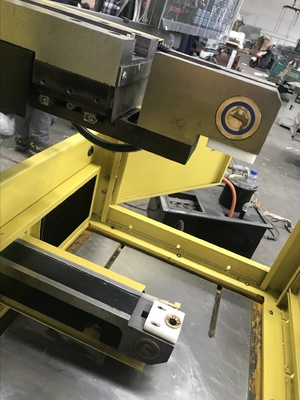

Detailed Photos



Electro Wire Cut EDM Machine S500f with Large Taper

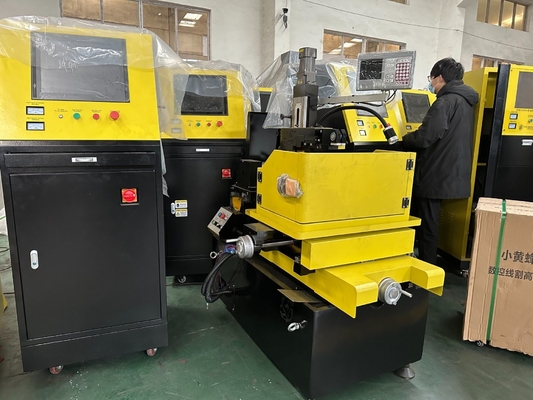

Packaging & Shipping

Electro Wire Cut EDM Machine S500f with Large Taper

Electro Wire Cut EDM Machine S500f with Large Taper

Company Profile

Electro Wire Cut EDM Machine S500f with Large Taper
Electro Wire Cut EDM Machine S500f with Large Taper

Electro Wire Cut EDM Machine S500f with Large Taper
