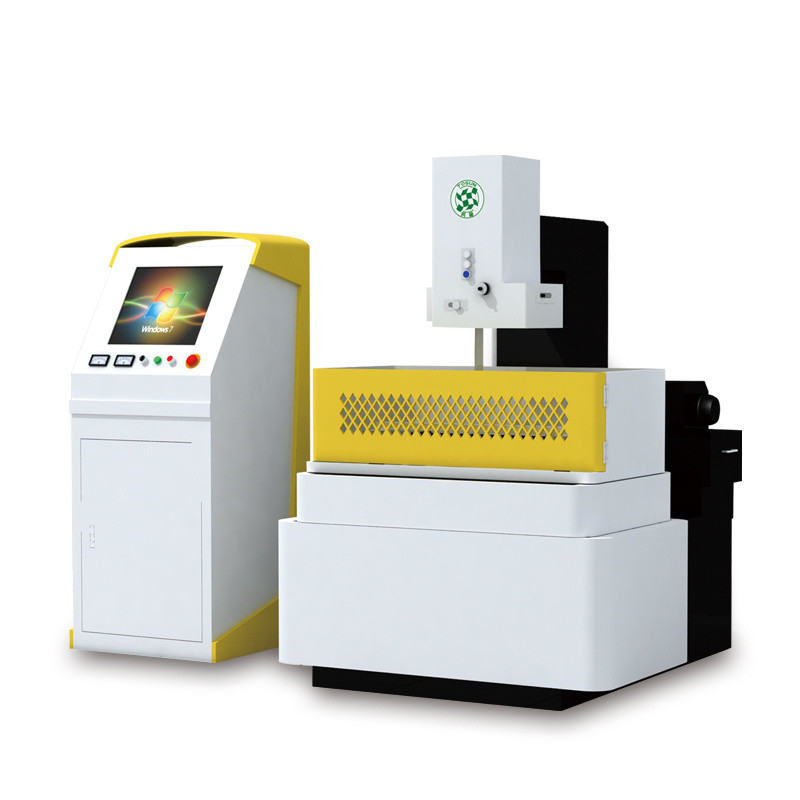

Medium Speed Servo Motor CNC Wire Cut EDM Machine D400c with After-sales Service

Medium Speed Servo Motor CNC Wire Cut EDM Machine D400c with After-sales Service

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: D400C Numerical Control: CNC/MNC
Processing Precision: 0.01~0.02(mm) Performance Classification: Mid-Range CNC Machine Tools
Condition: New Transport Package: Wooden Case
Specification: 1810× 1350× 2300 Trademark: TOSUN
Origin: Suzhou HS Code: 8456301090
Supply Ability: 1000PCS/Year After-sales Service: Yes
Warranty: 1 Year Application: Metal
Process Usage: Metal-Cutting CNC Machine Tools Movement Method: Linear Control
Control Method: Open-Loop Control Customization: Available | Customized Request

Product Description

Product Description

With its high position accuracy, processing accuracy, stable processing, and high consistency, this machine is perfect for the processing of precision molds like progressive dies.

At Jilin Songjiang Tech-trade Co., Ltd., we take pride in offering top-notch products that meet the needs of our customers. Our Servo Motor CNC Wire Cutting EDM Machine (Expert) D400C is no exception. With its advanced features and reliable performance, it's a game-changer in the industry.

Key Features:

  • High rigidity cast iron C shape structure
  • X/Y axis Panasonic AC servo Motor
  • Automatic tighting system
  • Linear guide rail (HIWIN)
  • Z axis auto lift funtion
  • Intergrated electric lubrication system of guide rail and lead screw

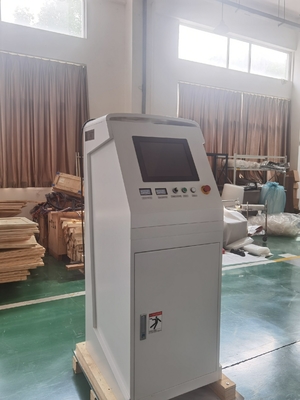

  • Industrial computer IPC
  • Separating transformer system
  • Speical Aluminum cutting device (optional)

Product Parameters


Equipment Specification
No. Description Unit Specification
1 Model

D400C
2 Worktable Size (L×W) mm 720×520
3 Worktable Travel (X×Y) mm 400×500
4 Max. Workpiece Height mm 300
5 Max. Workpiece Weight kg 600
6 Machine Dimensions (L×W×H) mm 1810×1350×2300
7 Machine Weight kg 2500

Electrical Parameters
No. Description Unit Specification
1 Max. cutting speed mm²/min ≥240
2 Wire electrode diameter mm Φ0.08~Φ0.25
3 Machining precision
(Cutting the octagon in 10mm)
mm ±0.003
4 Taper/Workpiece height   *±6°/80mm
5 Power consumption kw 3
6 Surface roughness μm **Multiple cut Ra≤0.6
7 High pressure water tank   Multi-stage filter system
8 Wire guided spinneret   Ruby spinneret
9 Control method of wire spool, cooling system   Controlled by the program and the NC panel
10 Repeating position precision of X, Y-axis μm ±1
11 Guide rail type   Linear guide rail
12 Speed regulation of transport wire tube   Converter
13 Number of control axes   5
14 Power Supply   AC380V, 50Hz
*The spinneret should be new and the processing time should not be too long.
**The material of workpiece is Cr12 and the height is less than 100mm.

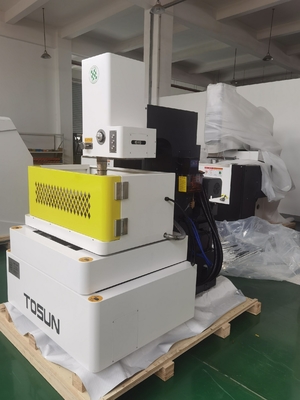

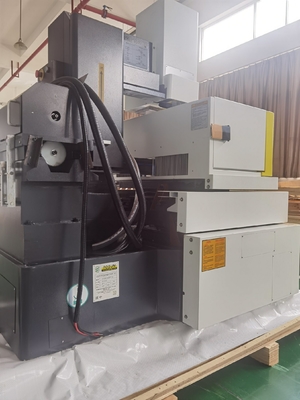

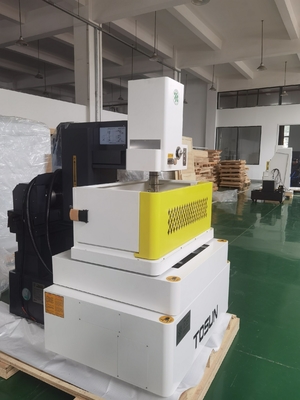

Detailed Photos

Servo Motor Medium Speed CNC Wire Cut EDM Machine D400c

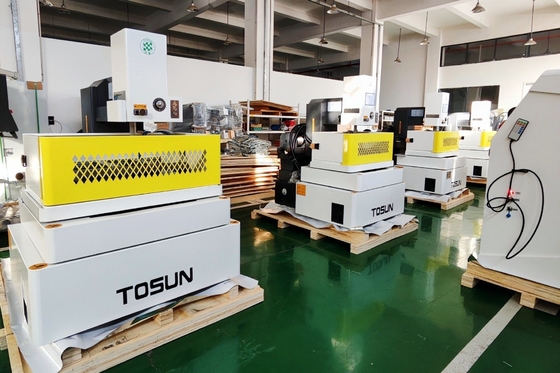

Packaging & Shipping
