Large Travel Large Taper CNC Wire Cut EDM Machine Dk77120 for Precision Metal Cutting
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | DK77120 | Numerical Control: | CNC/MNC |
|---|---|---|---|
| Processing Precision: | 0.01~0.02(mm) | Performance Classification: | Economical CNC Machine Tools |
| Condition: | New | Transport Package: | Wooden Case |
| Specification: | 1200X1600 | Trademark: | TOSUN |
| Origin: | Suzhou | HS Code: | 8456301090 |
| Supply Ability: | 1000PCS/Year | After-sales Service: | Yes |
| Warranty: | 1 Year | Application: | Metal |
| Process Usage: | Metal-Cutting CNC Machine Tools | Movement Method: | Linear Control |
| Control Method: | Open-Loop Control | Customization: | Available | Customized Request |
Product Description

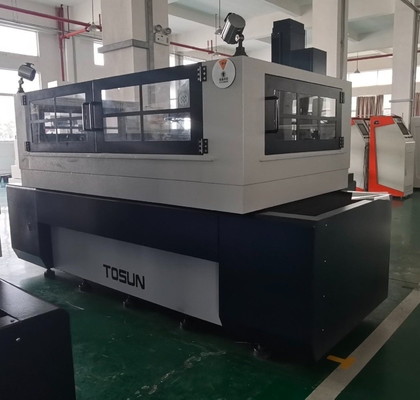

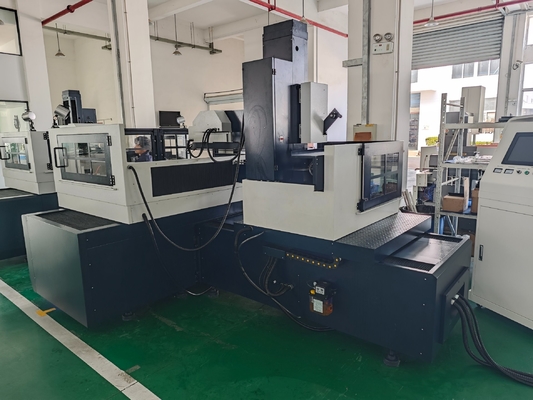

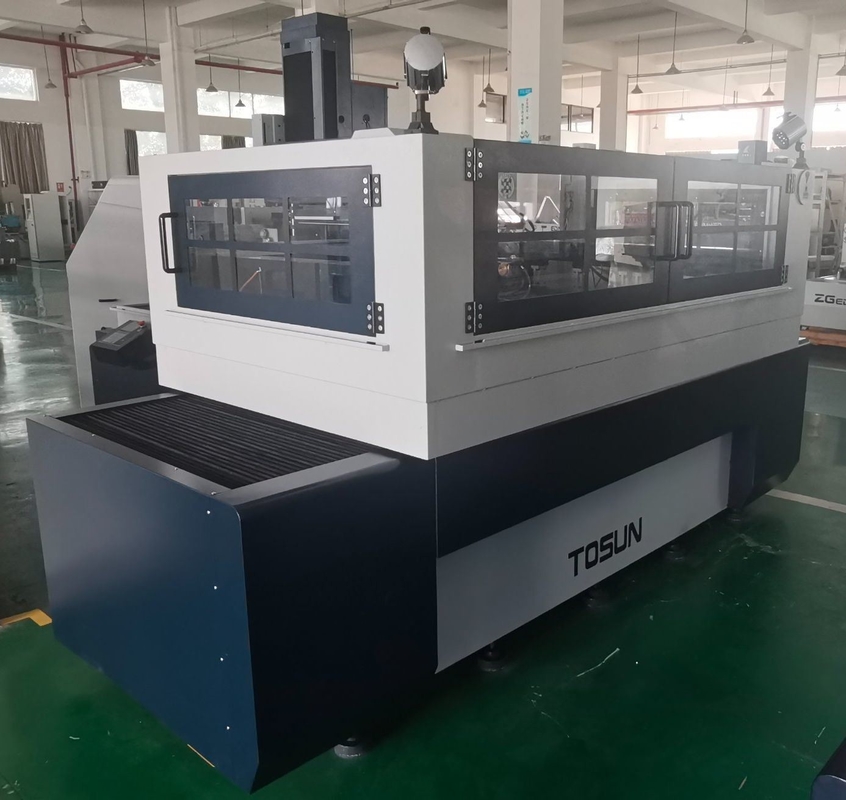

Expert Type CNC EDM Wire Cutting Machine DK77120 has high positioning accuracy, high processing accuracy, stable processing and high consistency. The equipment is suitable for the processing of precision molds such as progressive die.
Key Features:
- High rigidity cast iron C shape structure
- X/Y axis Panasonic AC servo Motor
- Automatic tighting system
- Linear guide rail (HIWIN)
- Z axis auto lift funtion
- Intergrated electric lubrication system of guide rail and lead screw
- Industrial computer IPC

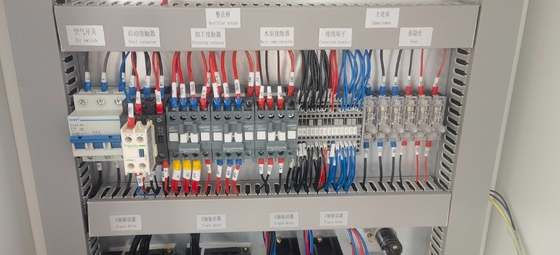

- Separating transformer system
- Speical Aluminum cutting device (optional)
Electrical Parameters
| No. | Description | Unit | Specification |
| 1 | Max. cutting speed | mm²/min | 200 |
| 2 | Wire electrode diameter | mm | Φ0.10~Φ0.25 |
| 3 | Machining precision (Cutting the octagon in 10mm) | mm | ≤0.005/ 10mm |
| 4 | Taper/Workpiece height | *60°/80mm | |
| 5 | Power consumption | kw | 3 |
| 6 | Surface roughness | μm | **Multiple cut Ra<0.7 |

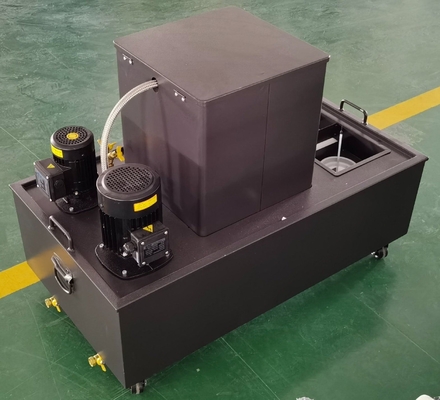

| 7 | High pressure water tank | Multi-stage filter system | |
| 8 | Wire guided spinneret | Ruby spinneret | |
| 9 | Control method of wire spool, cooling system | Controlled by the program and the NC panel | |
| 10 | Repeating position precision of X, Y-axis | μm | ±1 |
| 11 | Guide rail type | Linear guide rail | |
| 12 | Speed regulation of transport wire tube | Converter | |
| 13 | Number of control axes | 5 | |
| 14 | Power Supply | AC380V, 50Hz |
**The material of workpiece is Cr12 and the height is less than 0mm.
