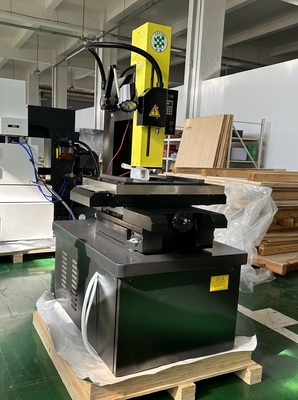

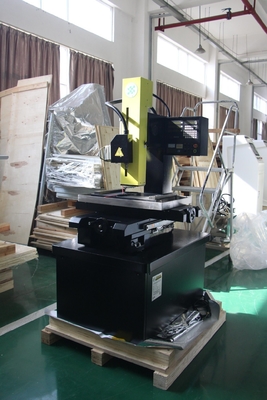

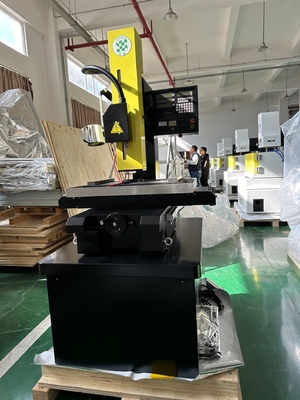

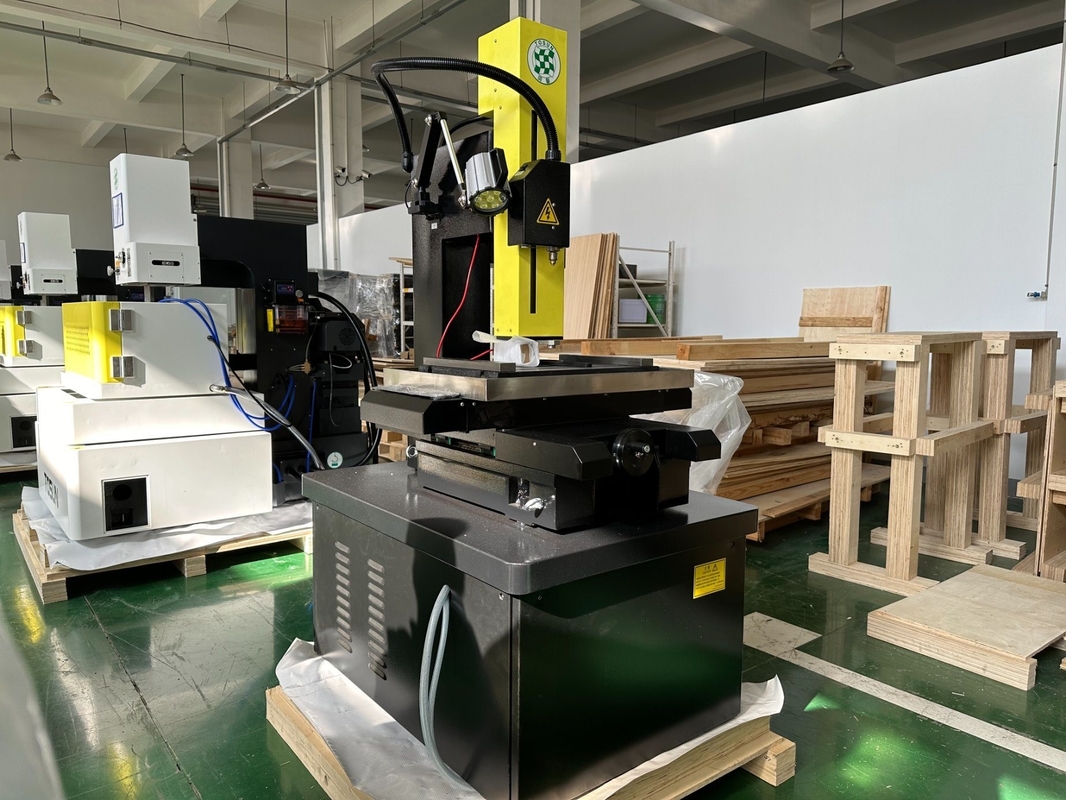

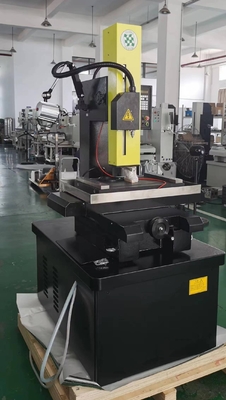

Economical CNC EDM Small Hole Drilling Machine 703SA
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | 703SA | Process Usage: | Metal-Drilling CNC Machine Tools |
|---|---|---|---|
| Movement Method: | Linear Control | Control Method: | Open-Loop Control |
| Numerical Control: | CNC/MNC | Performance Classification: | Economical CNC Machine Tools |
| Condition: | New | Transport Package: | Wooden Case |
| Specification: | 900× 900× 1800 | Trademark: | TOSUN |
| Origin: | Suzhou | HS Code: | 8456301090 |
| Supply Ability: | 1000PCS/Year | Package Size: | 900.00cm * 900.00cm * 1800.00cm |
| Package Gross Weight: | 550.000kg | After-sales Service: | Yes |
| Warranty: | 1 Year | Application: | Metal |
| Customization: | Available | Customized Request | Shipping Cost: | About Shipping Cost And Estimated Delivery Time. |
| : | Initial Payment Full Payment | Currency: | US$ |
| Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. | ||
Product Description
CNC EDM Small Hole Drilling Machine 703SA is suitable for processing micro-holes, deep holes, nozzle holes, filter holes, pores and group holes of various metals and super hard conductor materials.
Features:
-
703SA Electrical Discharge Drilling Machine for Mini hole can drill wire-cut starting hole, filter hole, jet hole, gas hole, group holes and hole of super depth etc.
-
It can drill small holes on the various conductive materials, even semiconductor material, especially stainless steel, chilled steel, copper, aluminum and hard alloy etc.
-
This machine can drill on oblique and curved surface directly.
-
703 series can easily erode the drill and screw tap etc which is broken in the workpiece and not destroy the screw thread of the holes.
-
The working water can be normal water or saponification fluid and no pollution is brought.
-
The operation is easy and convenient.
-

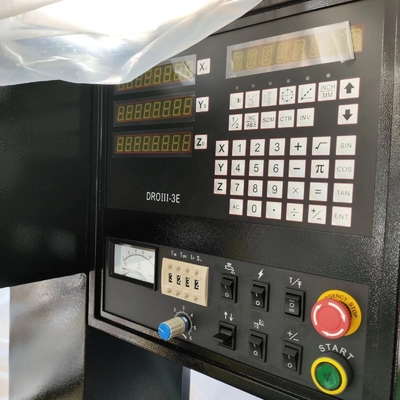

X, Y, Z axes have digital display devices.
-
Z axis DC servo drive and has the function of setting depth.
| No. | Description | Unit | Specification |
| 1 | Model | 703SA | |
| 2 | Control Mode | Z-axis CNC controller | |
| 3 | Digital Display | 3 axis digital display | |
| 4 | Working Technology | Steel/copper/aluminum and other conductive material | |
| 5 | Working Solution | kw | Tap Water/ Saponified liquid |
| 6 | Worktable Size (L×W) | mm | 550×360 |
| 7 | Worktable Travel (X×Y×Z) | mm | 400×300×(380+250) |
| 8 | Max. Workpiece Weight | kg | 150 |
| 9 | Max. Drilling Speed | mm²/min | 30-60 (Φ1.0mm) |
| 10 | Max. Drilling Depth | mm | 260 |
| 11 | Hole Diameter | mm | Φ0.3~Φ3.0 |
| 12 | Max. Working Solution Pressure | kg/cm² | 80 |
| 13 | Working Tank Size (L×W) | mm | 700×480 |
| 14 | Max. Depth Diameter Ratio | ≥300 | |
| 15 | Max. Working Current | A | 30 |
| 16 | Machine Body Dimensions (L×W×H) | mm | 900×900×1800 |
| 17 | Machine Weight | kg | 550 |
