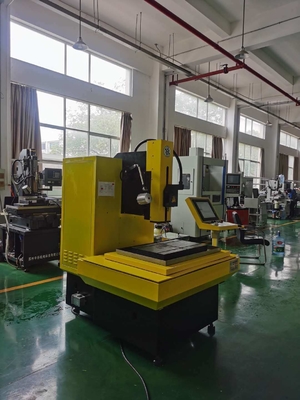

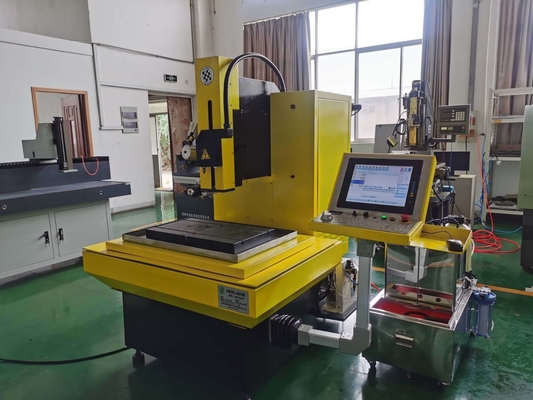

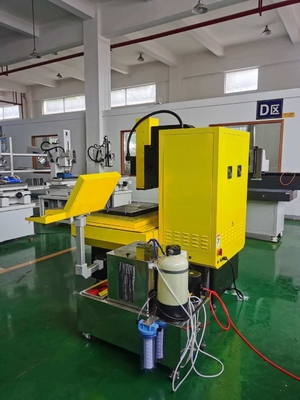

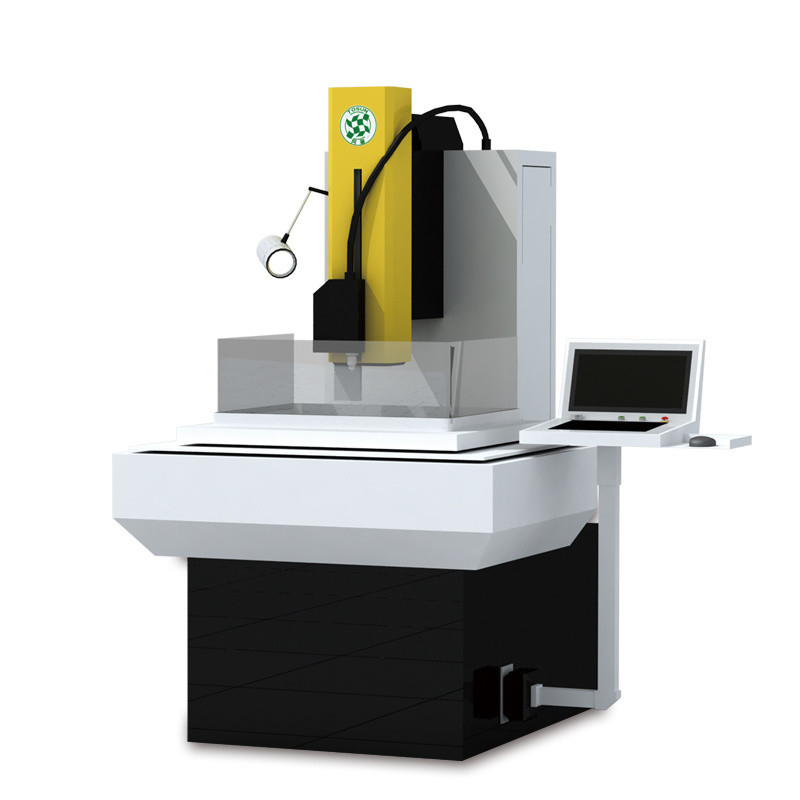

High Precision Multi Axis CNC Electric Discharge Small Hole Drilling Machine Sjd705
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | SJD705 | Numerical Control: | CNC/MNC |
|---|---|---|---|
| Processing Precision: | 0.01~0.02(mm) | Performance Classification: | Economical CNC Machine Tools |
| Condition: | New | Transport Package: | Wooden Case |
| Specification: | 1500x1900x2200mm | Trademark: | TOSUN |
| Origin: | Suzhou | HS Code: | 8456301090 |
| Supply Ability: | 1000PCS/Year | After-sales Service: | Yes |
| Warranty: | 1 Year | Application: | Metal |
| Process Usage: | Metal-Drilling CNC Machine Tools | Movement Method: | Linear Control |
| Control Method: | Open-Loop Control | Customization: | Available | Customized Request |
Product Description
Features:
- High-performance machine body. The precision is improved obviously.
- Industrial PC controller and the leading operating system are adopted.
- CAD document automatic programming. No limit to the number of processing hole.
- Touch screen operation.
- Control the axes through manual encoder.
- Transfer data over the network.
- X, Y, Z, W, C-axis process at the same time.
- Integrated machine design& precision hole processing.
- Ac servo motor connect directly.
- Improve processing efficiency by automatic high speed hole drilling.
- It can process all kinds of hard materials and stainless steel.
- It can alert in case of the electrode depletion.
| Description | Unit | Specification |
| Model | SJD705 | |
| Worktable Size (L×W) | mm | 750×470 |
| X,Y, Z axis Travel | mm | 500×400x370 |
| W axis Travel | mm | 300 |
| C axis Rotating Angle | ° | 0~360 |
| Electrode Diameter | mm | Φ0.15~Φ3.0 |
| Max. Workpiece Height | mm | 370 |
| Max. Workpiece Weight | kg | 300 |
| Max. Working Solution Pressure | Mpa | 10 |
| Max. Working Current | A | 30 |
| Pitch Compensation | mm | Yes |
| Location Accuracy/Repeating Position Precision | mm | 0.01/0.005 |
| Programming Mode | mm | MDI, CAD, List |
| Max. moving Speed of x, y-axis | mm/min | ≥2000 |
| Working Solution | Pure water | |
| Machine Dimension | mm | 1500x1900x2200 |
| Machine Weight | Kg | 2000 |
