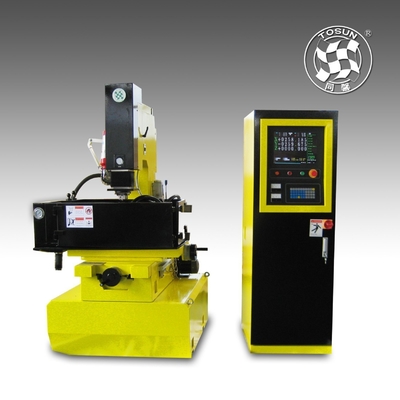

Znc Die Sinking EDM Machine EDM450 with Process Usage Metal-Forming CNC Machine Tools

Znc Die Sinking EDM Machine EDM450 with Process Usage Metal-Forming CNC Machine Tools

Product Details:

Place of Origin: China
Brand Name: TOSUN
Certification: ISO 9001

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays
Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment
Supply Ability: 1000PCS/Year
Get Best Price Contact Now

Detail Information

Model NO.: EDM450 Numerical Control: CNC/MNC
Performance Classification: Economical CNC Machine Tools Condition: New
Transport Package: Wooden Case Specification: 1550× 1500 × 2200
Trademark: TOSUN Origin: Suzhou
HS Code: 8456301090 Supply Ability: 1000PCS/Year
After-sales Service: Yes Warranty: 1 Year
Application: Metal Process Usage: Metal-Forming CNC Machine Tools
Movement Method: Linear Control Control Method: Open-Loop Control
Customization: Available | Customized Request

Product Description



Product Description

Features:
1)The CNC EDM die sinking machine manufactured by our company has the characteristics of high precision, high surface finish, high speed, stable operation and less failure.

2)It is made of high-strength cast iron bed with firm structure.

3)This machine has the mirror processing function and Z-axis NC processing function.

4)It is suitable for the processing of complex mold cavity and curved surface of molds, precision machinery parts and all kinds of electrical conductive materials.

Product Parameters

No. Description Unit Specification
1 Model

EDM450
2 Worktable Size mm 700×420
3 Three-axis Travel  mm 450×350×(200+200)
4 Work Tank Inner Dimension mm 1140×670×400
5 Distance Between Electrode and Workable  mm 150-550
6 Max. Electrode Weight kg 90
7 Max. Work piece Weight  kg 1200
8 Max. Working Current A 50
9 Max. Processing Speed mm³/min >=500
10 Best Surface Roughness μm <=0.3
11 Min. Electrode Consumption Rate

<0.2%
12 Display System

15``LCD-TFT
13 Working Temperature ºC 5~35
14 Power supply

AC 380V 3P 50HZ
15 Power Consumption kva 4.5
16 Control cabinet Weight kg 200
17 Machine Dimensions mm 1550×1500×2200
18 Machine Weight kg 1700


Detailed Photos

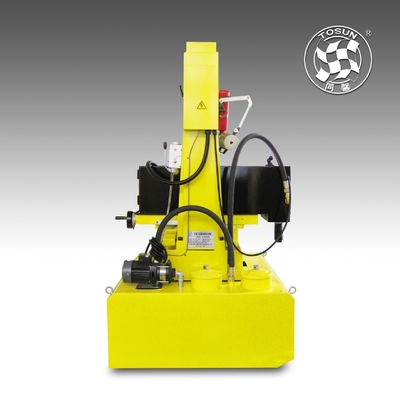

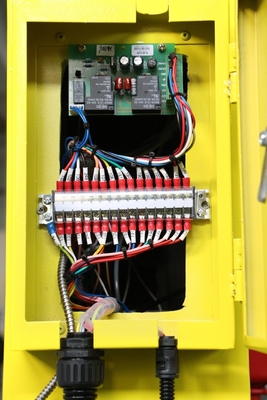

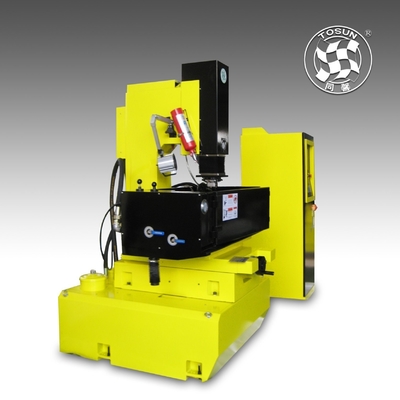

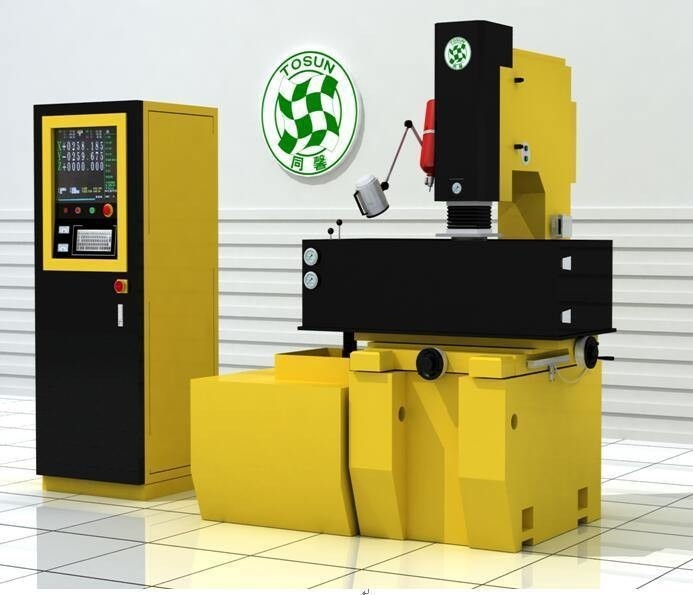

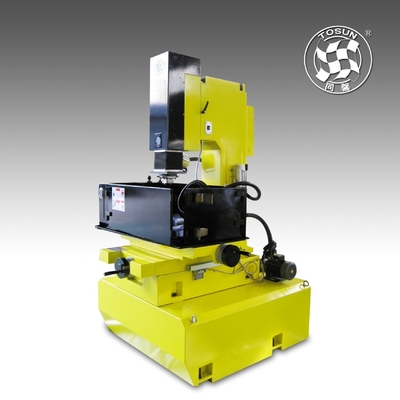

High Quality Znc Die Sinking EDM Machine EDM450High Quality Znc Die Sinking EDM Machine EDM450
