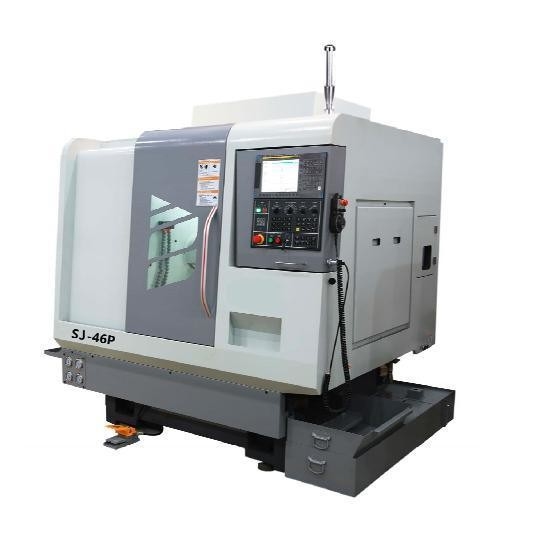

Gang Type Slant Bed CNC Lathe Turning Machine FANUC Sj-46p
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | SJ-46P | Processing Accessory: | Chuck CNC Lathe |
|---|---|---|---|
| Guide Rail: | Inclined Guide Rail | Tool Holder: | Single-tool Holder CNC Lathe |
| Power Source: | Electric | Controlling Mode: | CNC |
| Automatic Grade: | Automatic | Setting Mode: | Floor-type |
| Precision: | High Precision | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 2370× 1850× 2120mm |
| Trademark: | TOSUN | Origin: | Suzhou |
| HS Code: | 8458990000 | Supply Ability: | 1000PCS/Year |
| Package Size: | 2370.00cm * 1850.00cm * 2120.00cm | Package Gross Weight: | 3000.000kg |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Type: | Horizontal Lathe | Customization: | Available | Customized Request |
| Shipping Cost: | About Shipping Cost And Estimated Delivery Time. | : | Initial Payment Full Payment |
| Currency: | US$ | Return&refunds: | You Can Apply For A Refund Up To 30 Days After Receipt Of The Products. |
Product Description
- The machine adopts high-quality cast iron 30-degree inclined bed structure, with strong bending and torsional stiffness.
- C3 grade ball screw and NSK special bearing ensure stable positioning machining accuracy.
- The spindle adopts high-precision P4 level angular contact ball bearings, with a combination of front three and rear two load designs, effectively ensuring rigidity and accuracy.
- It adopts Taiwan's POSA servo motor and Japanese FANUC servo motor, with full pulse control for accurate, precise, and fast positioning. It can be used for functions such as Cs contour axis and rigid tapping.
- The maximum diameter of the bar material passing through the SJ-46 series turning and milling composite CNC lathe is Φ 45mm, with a maximum X-axis travel of 550mm, and up to 10 tools installed;
- Maximum rotation diameter of the spindle is Φ 400mm, capable of processing disc parts;
- Optional auxiliary devices such as high-pressure cooling device, oil bath feeder, automatic chip conveyor, etc.
| No. | Description | Specification |
| 1 | Spindle speed | 6000 rmp |
| 2 | Spindle end type | A2-5 |
| 3 | X axis servo motor (FANUC) | 1.8KW |
| 4 | Z axis servo motor (FANUC) | 1.8KW |
| 5 | FANUC control system | FANUC Oi-TF Plus |
| 6 | Bed spinning diameter | Φ450mm |
| 7 | Spindle Through-Hole Diameter | Φ56mm |
| 8 | Bar Through Diameter | Φ45mm |
| 9 | Max. turning length | 250mm |
| 10 | Max. turning diameter (for disc) | Φ400mm |
| 11 | Distance from spindle center to workbench | 75mm |
| 12 | X axis travel | 1100mm |
| 13 | Z axis travel | 350mm |
| 14 | X/Z axis rapid feed | 20-24m/mim |

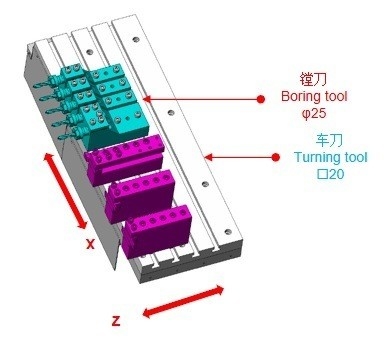

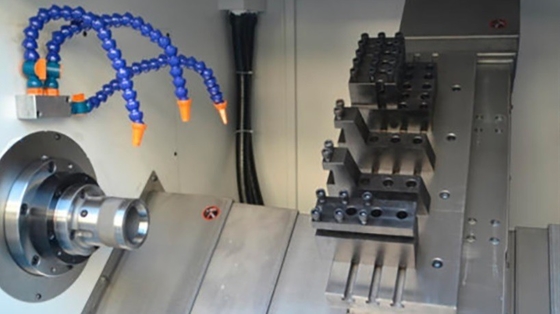

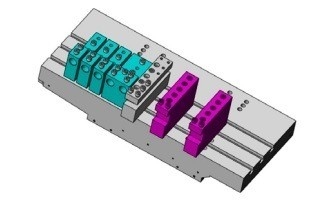

| 15 | Single hole boring (tool holder) | 1*Φ25(3pcs) |
| 16 | Double hole boring (tool holder) | 2*Φ25(1pcs) |
| 17 | Single-tool turing (tool holder) | 1*20(1pcs) |
| 18 | Double-tool turning (tool holder) | 2*20(2pcs) |
| 19 | X/Z axis repeated positioning accuracy | 0.003mm |
| 20 | X/Z axis positioning accuracy | ±0.005mm |
| 21 | Machine dimension | 2370×1850×2120mm |
| 22 | Machine weight | 3000KG |
