Horizontal Inclined Guide Rail CNC Turning Machine Lathe Clk6140s with After-sales Service
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | CLK6140S | Power Source: | Electric |
|---|---|---|---|
| Controlling Mode: | CNC | Automatic Grade: | Automatic |
| Setting Mode: | Floor-type | Precision: | High Precision |
| Condition: | New | Transport Package: | Wooden Case |
| Specification: | 2800× 1750× 1870mm | Trademark: | TOSUN |
| Origin: | Suzhou | HS Code: | 8458110090 |
| Supply Ability: | 1000PCS/Year | After-sales Service: | Yes |
| Warranty: | 1 Year | Type: | Horizontal Lathe |
| Processing Accessory: | Chuck CNC Lathe | Guide Rail: | Inclined Guide Rail |
| Tool Holder: | Single-tool Holder CNC Lathe | Customization: | Available | Customized Request |
Product Description

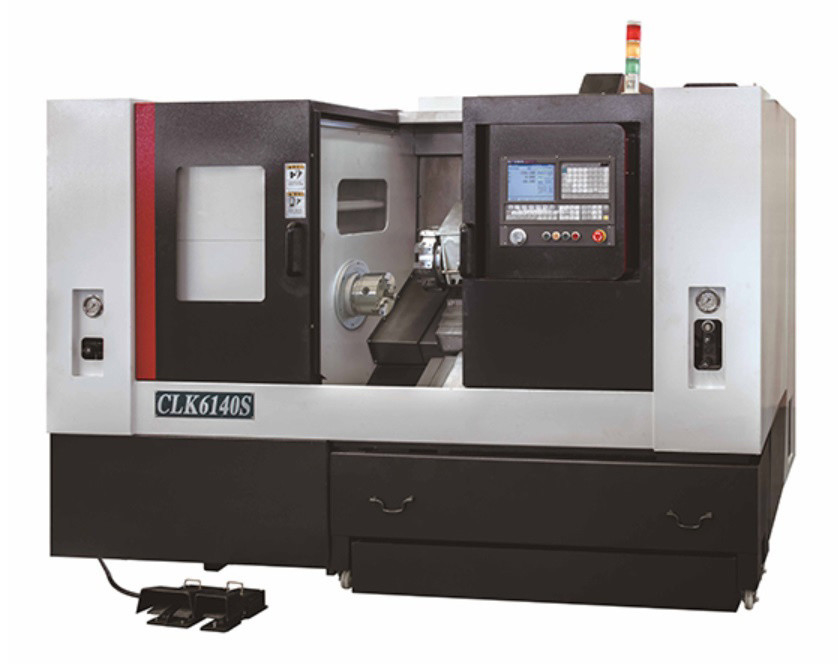

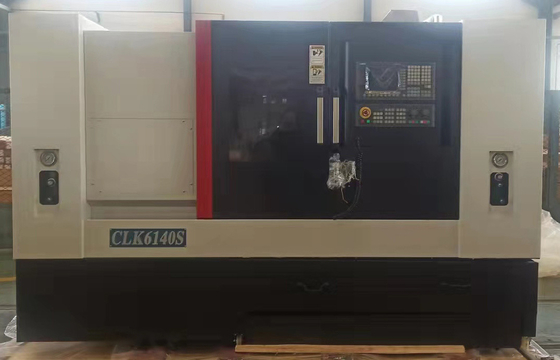

This machine tool is a fully functional 30 degree inclined bed CNC lathe, especially suitable for high-speed and high-precision processing of medium and small disk and shaft parts. This product has two linear axes, X and Z. The tailstock can be moved integrally with a long stroke through hydraulic drive. It can complete turning, drilling, boring, tapping, reaming and other functions in one clamping.
Standard Delivery

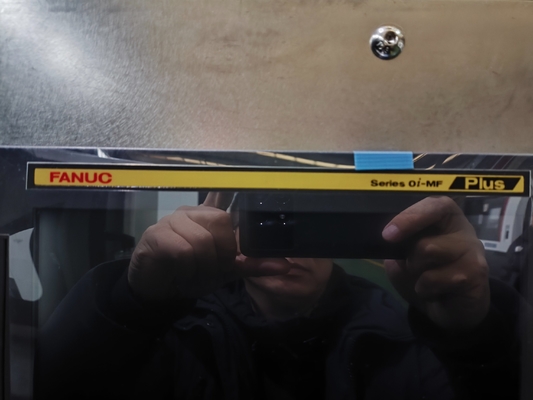

CNC system: Fanuc
8-inch three-jaw hydraulic chuck (Taiwan);
Movable hand pulse;
Z-axis rigid tapping;
Centralized automatic oil lubrication;
External cooling system (including chip tray, cooling box, cooling pump);
Manual chip removal;
Fully protective sheet metal outer shield and internal screw and guide rail shields;
Adjusting horns;
Work light;
Work warning light;
Hydraulic station
Optional Delivery
CNC system: Siemens, Mitsubishi, GSK, etc
Collet chuck
| Description | Unit | Specification |
| Max. swing over bed | mm | φ540 |
| Max. processing diameter (not over carriage/over carriage) | mm | φ400/270 |
| Max. processing length | mm | 550 |
| Spindle bar-through diameter | mm | φ50 |
| X axis travel | mm | 220 |
| Z axis travel | mm | 600 |
| X axis fast moving speed | m/min | 18 |
| Z axis fast moving speed | m/min | 18 |
| Cutting Feed speed | mm/min | 1-5000 |
| Spindle speed | rpm | 4000 |
| Spindle nose | A2-6 | |
| Spindle through hole diameter | Φ64 | |
| Spindle chuck | mm | Hydraulic 8" |
| Spindle motor | KW | 7.5 |
| No. of tools | pc | 10 |
| Size of square tools | mm | 20 |
| Diameter of round hole tools | mm | 25 |
| Tailstock travel | mm | 450 |
| Tailstock feed type | hydraulic | |
| Positioning accuracy | mm | ±0.008 |
| Repeated positioning accuracy | mm | ±0.004 |
| Power | AC 380V 50Hz | |
| Machine size | mm | 2800×1750×1870 |
| Machine weight | kg | 3500 |
Standard Delivery
CNC system: Fanuc
8-inch three-jaw hydraulic chuck (Taiwan);
Movable hand pulse;
Z-axis rigid tapping;
Centralized automatic oil lubrication;
External cooling system (including chip tray, cooling box, cooling pump);
Manual chip removal;
Fully protective sheet metal outer shield and internal screw and guide rail shields;
Adjusting horns;
Work light;
Work warning light;
Hydraulic station
Optional Delivery
CNC system: Siemens, Mitsubishi, GSK, etc
Collet chuck
