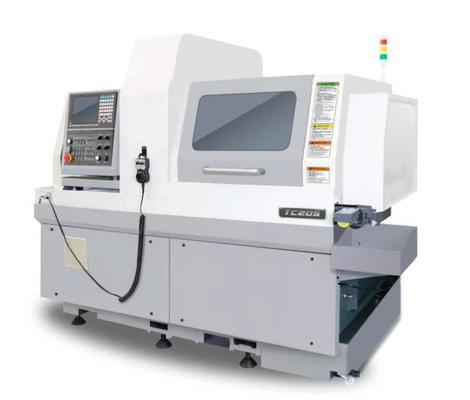

5 Axis Technology TC205 Spindle Swiss Type CNC Turning Lathe with After-sales Service
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
| Certification: | CE, RoHS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | TC205 | Processing Precision: | 0.01~0.02(mm) |
|---|---|---|---|
| Performance Classification: | High-End CNC Machine Tools | Condition: | New |
| Transport Package: | Wooden Case | Specification: | 2450*1350*1850 |
| Trademark: | TOSUN | Origin: | Suzhou |
| HS Code: | 8458190000 | Supply Ability: | 500PCS/Year |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Application: | Metal | Movement Method: | Linear Control |
| Control Method: | Semi-Closed Loop Control | Numerical Control: | CNC/MNC |
| Customization: | Available | Customized Request | ||
Product Description
- Each axis uses imported high-precision linear guide, ball screws and precision bearings.
- Use synchronous guide bush structure, realize high-speed and high-precision machining.
- Flexible switch between guide bush and non guide bush mode to meet the needs of different processing techniques.
- Key components with gas sealing structure, oil and slag prevention, improving service life and stability.
- High torque motor, high rigidity and strength axis slide and tool holder to meet the requirements of large cutting volume and high processing efficiency.
- High scalability, with different tool quantities matched with the process, resulting in high cost-effectiveness.
| Model | TC205 | |
| 5-axis, dual spindle | ||
| NC system | SYNTEC 220TB | |
| Lathe rated power | kw | 15 |
| Maximum machining diameter | mm | φ20 |
| Maximum machining length (one-time clamping) With guide bush | mm | 230 |
| Maximum machining length (one-time clamping) Non guide bush | mm | 2D |
| Main spindle power | kw | 2.2/3.7 |
| Sub spindle power | kw | 2.2/3.7 |
| Main spindle max through hole dia | mm | φ27 |
| Main/sub spindle rev speed | rpm | 10000/10000 |
| Sub spindle max clamping dia | mm | φ20 |
| Sub spindle max through hole dia | mm | φ27 |
| Rapid feed speed | m/min | 18(X1)24(X2/Y1/Z1/Z2) |
| Feed motor power | kw | 1 |
| The power capacity | kva | 15 |
| Air pressure device | mpa | 0.6 |
| Weight | kg | 3500 |
| Dimensions L*W*H | mm | 2450*1350*1850 |

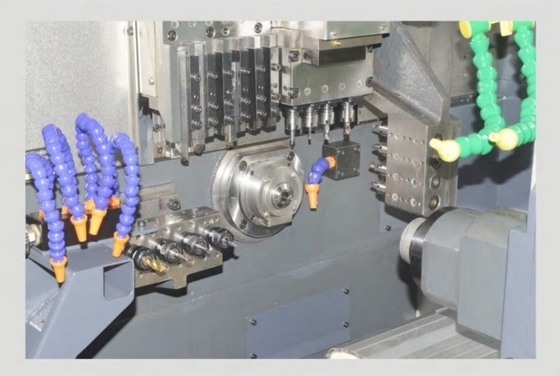

Tool Configurations
| Main spindle tool | Sub spindle tool | |||

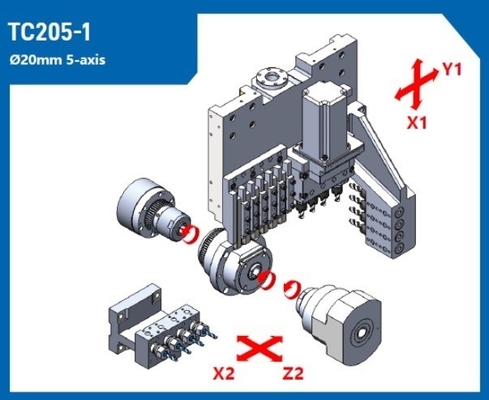

| TC205-1 | OD Turning tool | 6 x #12mm | End face fixed tool | 4 x ER16 |
| Cross live tool | 4 x ER16 | |||
| End face fixed tool | 4 x ER16 | |||

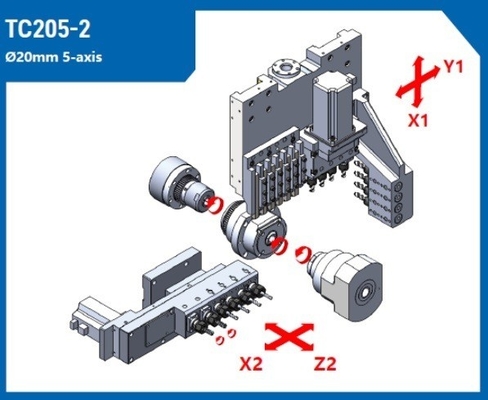

| TC205-2 | OD Turning tool | 6 x #12mm | End face fixed tool | 4 x ER16 |
| Cross live tool | 4 x ER16 | End face live tool | 2 x ER16 | |
| End face fixed tool | 4 x ER16 | |||

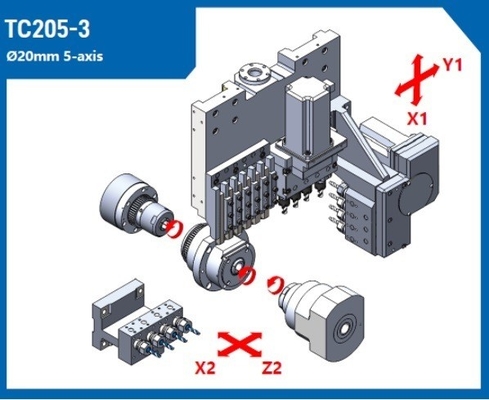

| TC205-3 | OD Turning tool | 6 x #12mm | End face fixed tool | 4 x ER16 |
| Cross live tool | 4 x ER16 | |||
| End face fixed tool | 4 x ER16 | |||
| End face live tool | 3 x ER16 | |||

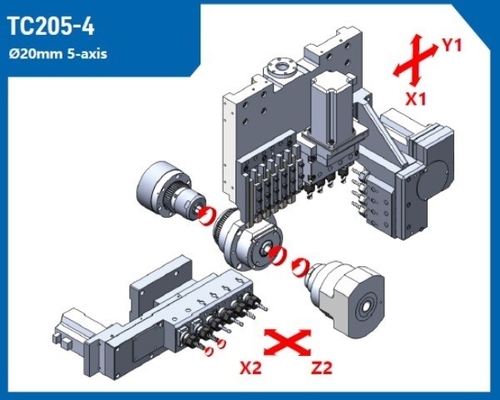

| TC205-4 | OD Turning tool | 6 x #12mm | End face fixed tool | 4 x ER16 |
| Cross live tool | 4 x ER16 | |||
| End face fixed tool | 4 x ER16 | End face live tool | 2 x ER16 | |
| End face live tool | 3 x ER16 | |||
Tool Parameters
| Drilling dia | Tapping/Threading die dia | Rev speed | Power | |
| Cross live tool | φ10mm | M6mm | 5500rpm | 1kw |
| End face fixed tool (main spindle) | φ10mm | M8mm | ||
| End face live tool (main spindle) | φ10mm | M6mm | 5500rpm | 0.75kw |
| End face fixed tool (sub spindle) | φ10mm | M8mm | ||
| End face live tool (sub spindle) | φ10mm | M6mm | 5500rpm | 1kw |
