JIS D4422-90 Standards Sj211 Brake Pads Shear Tester for Standards Testing
Product Details:
| Place of Origin: | China |
| Brand Name: | TOSUN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | Peak Season Lead Time: within 15 workdays, Off Season Lead Time: within 15 workdays |
| Payment Terms: | LC, T/T, D/P, PayPal, Western Union, Small-amount payment |
| Supply Ability: | 1000PCS/Year |
|
Detail Information |
|||
| Model NO.: | SJ211 | Accuracy Grade: | 0.5 |
|---|---|---|---|
| Load Way: | Mechanical Load | Loading Method: | Dynamic Load |
| Display: | Needle | Control: | Computer Control |
| Weight: | 500-1000Kg | Power Source: | AC220V |
| Oil Cylinder Position: | Under | Standards: | ISO 6312-81, JIS D4422-90, SAE J840-82 |
| Transport Package: | Wooden Case | Specification: | 1500× 800× 1470 |
| Trademark: | TOSUN | Origin: | China |
| HS Code: | 8505200000 | Supply Ability: | 1000PCS/Year |
| After-sales Service: | Yes | Warranty: | 1 Year |
| Max Diameter Of Workpiece: | <500mm | Mass Scope Of Workpiece: | <900kg |
| Type: | Strength Testing Machine | Maxcapacity: | <1000KN |
| Customization: | Available | Customized Request | ||
Product Description

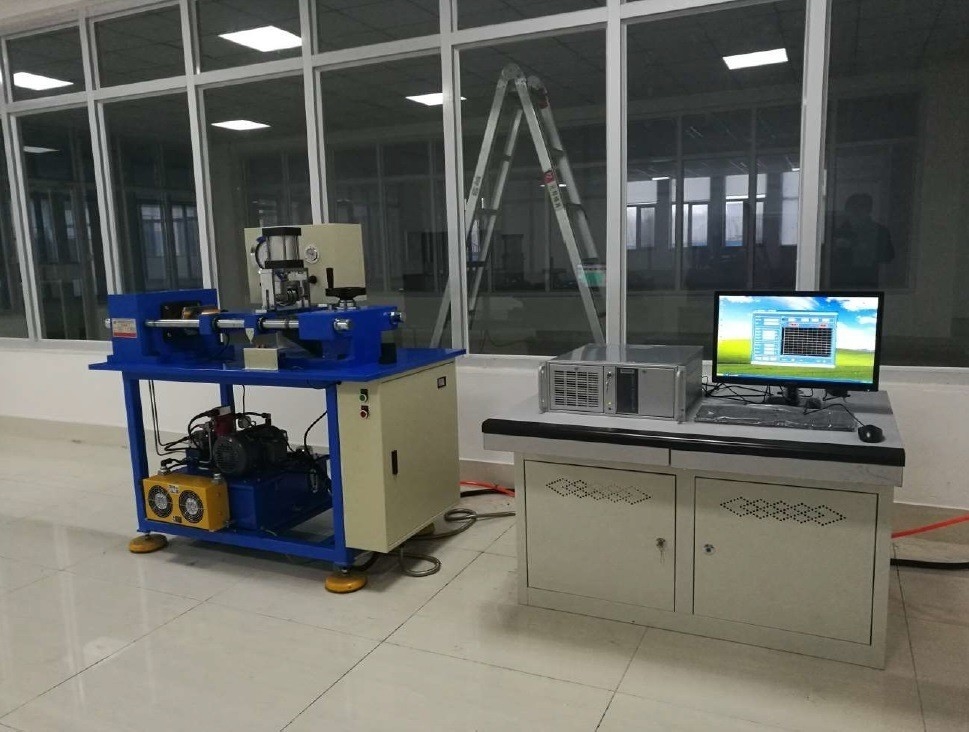

It is used for measuring and checking the shearing strength of brake friction material with metal part.
It can test the data in the following standard and draw the curve.
Standard: ISO6312-81, JIS D4422-90, SAE J840-82
Testing object: disc brake pads
| No. | Description | Unit | Specification |
| 1 | Model | SJ211 | |
| 2 | Vertical normal pressure | kn | Max. 5.5 |
| 3 | Indicator Reading | adjustable | |
| 4 | Shearing force | kn | Max. 100 |
| 5 | Rate of loading | n/s | 6,500±500, adjustable |
| 6 | Size of sample (Brake pads) | mm | (max) 160×80×30 |
| 7 | Size of sample (Drum lining) | mm | (max) R160×100 |
| 8 | Power | kw | 1.5 |
| 9 | Measurement & controlling | kw | Control & detect & print out by computer |
| 10 | Machine Dimensions | mm | 1500×800×1470 |
| 11 | Weight | kg | 700 |
China National Machinery & Technology (Tianjin) Co., Ltd. Was founded in September 2013. It is mainly engaged in the design & manufacture of CNC machine tool and molds and import & export business. The headquarter, based in Tianjin, belongs to intra-group enterprise of Jilin Songjiang Tech-Trade Co., Ltd. It is also the parent company of East Machinery Co., Ltd. In Moscow, Russia and China National Machinery & Manufacture (Tianjin) Co., Ltd. The company has self-built factory in Jilin city, process & display workshop and factories in Moscow, also OEM factory in Taizhou city.

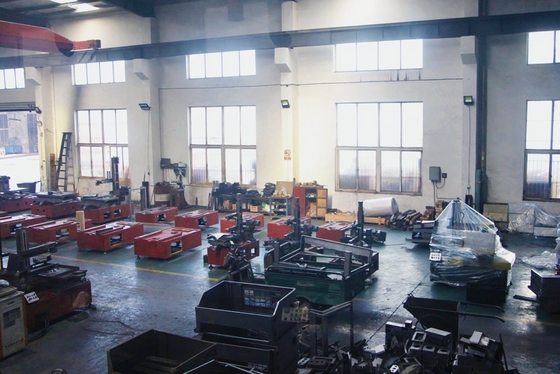

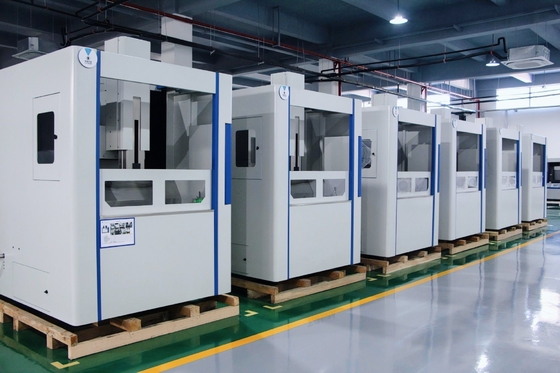

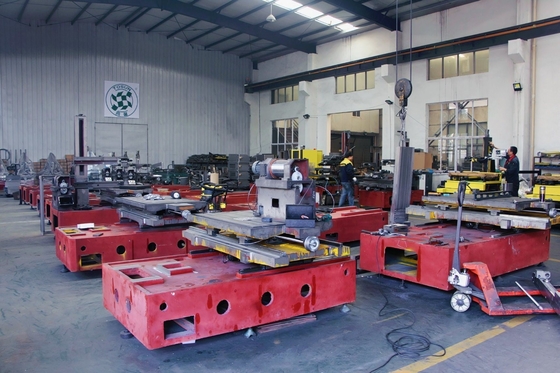

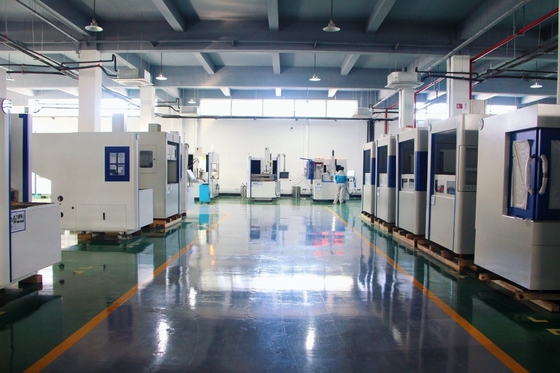

The company has advanced production equipment and test instruments, outstanding marketing team and channel partner in domestic regions, as well as the sound management plan regarding the product market development and after-sale service. By virtue of strong professional research&development team and advanced sales service concept, our products gained a high popularity and market share at home and abroad.
